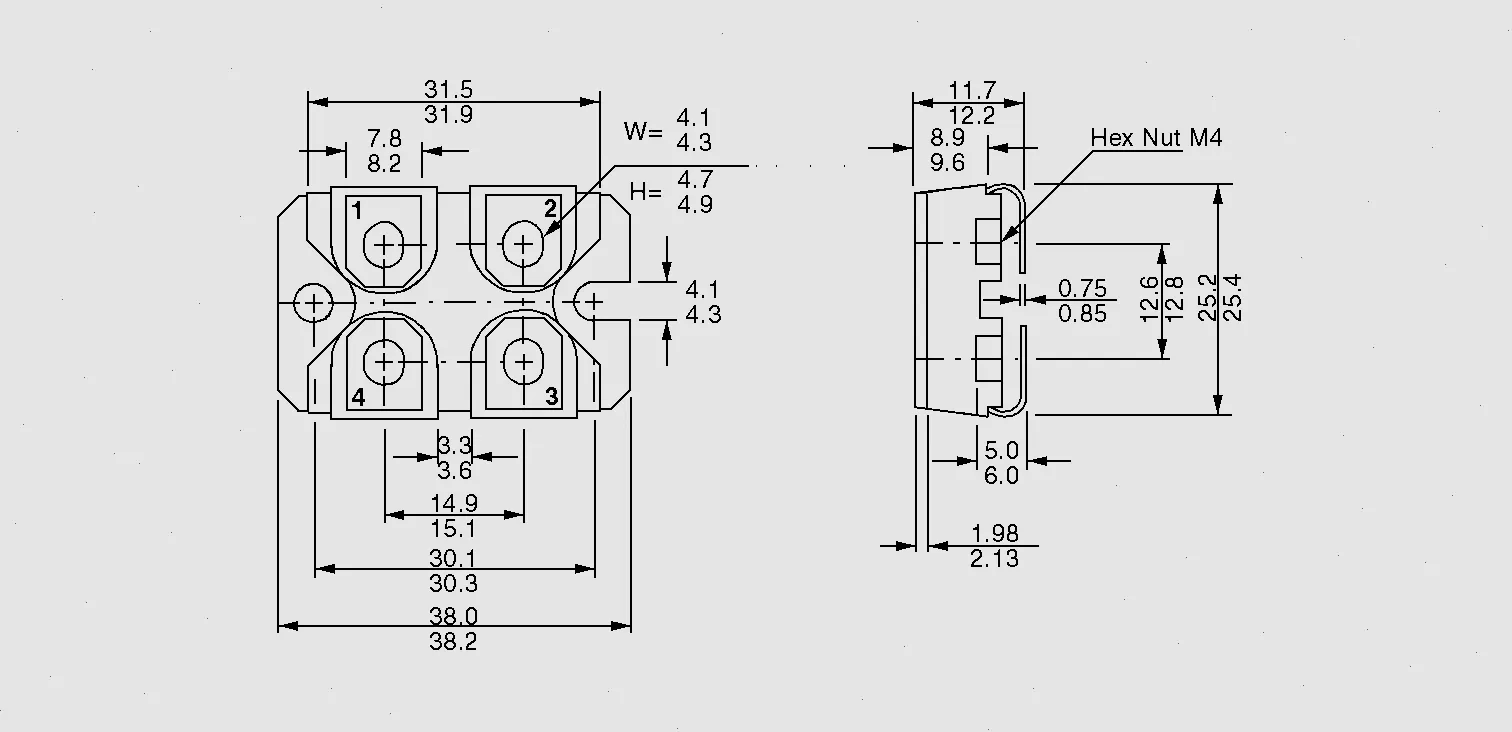

2xFRED 600V 2x60A 140W SOT227B
Varenummer:
78-472
Varekode: DSEP2X61-06A
Vægt: 43 g
0 stk.
på lager
Gruppe:
V2937
IXYS Fast Recovery Epitaxial Diodes
Series: DSEI2X_, DSEP2X_
Case: SOT227B
IXYS Fast Recovery Epitaxial Diodes
Series: DSEI2X_, DSEP2X_
Case: SOT227B
| Technical Specifications |
| Part Nr. | URRM | UF | IF(AV) | IFSM | IR | trr |
| [V] | [V] | [A] | [A] | [µA] | [ns] | |
| DSEI2X30-12B | 1200 | 2,55 | 28 | 200 | 750 | 40 |
| DSEI2X31-06C | 600 | 1,6 | 30 | 300 | 100 | 35 |
| DSEI2X31-12B | 1200 | 2,55 | 28 | 200 | 750 | 40 |
| DSEI2X61-02A | 200 | 1,08 | 71 | 950 | 50 | 35 |
| DSEI2X61-06C | 600 | 1,8 | 60 | 550 | 200 | 35 |
| DSEI2X61-12B | 1200 | 2,5 | 52 | 450 | 2200 | 40 |
| DSEI2X101-06A | 600 | 1,25 | 96 | 1200 | 3000 | 35 |
| DSEI2X101-12A | 1200 | 1,87 | 91 | 900 | 3000 | 40 |
| DSEI2X121-02A | 200 | 1,1 | 123 | 1200 | 1000 | 35 |
| DSEP2X61-06A | 600 | 2,01 | 60 | 600 | 650 | 35 |
| DSEP2X61-12A | 1200 | 2,42 | 60 | 800 | 1000 | 40 |
| DSEP2X91-03A | 300 | 1,72 | 90 | 1000 | 1000 | 30 |
| per Diode: URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IFSM = Peak Forward Surge Current, IR = Max. Reverse Current, trr = Typ. Reverse Recovery Time | ||||||
 | ||||||
| Additional Products |
| We will also deliver on request all other articles from IXYS, forward orders possible. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.ixys.com |
|
