Schottky 45V 10A TO220AC
Varenummer:
78-407
Varekode: MBR1045
Vægt: 2 g
32 stk.
på lager
- DIODE, SCHOTTKY, 10A, 45V
- Diode Type: Schottky
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 45V
- Forward Current If(AV): 10A
- Forward Voltage VF Max: 700mV
- Forward Surge Current Ifsm Max: 150A
- Operating Temperature Range: -65°C to +150°C

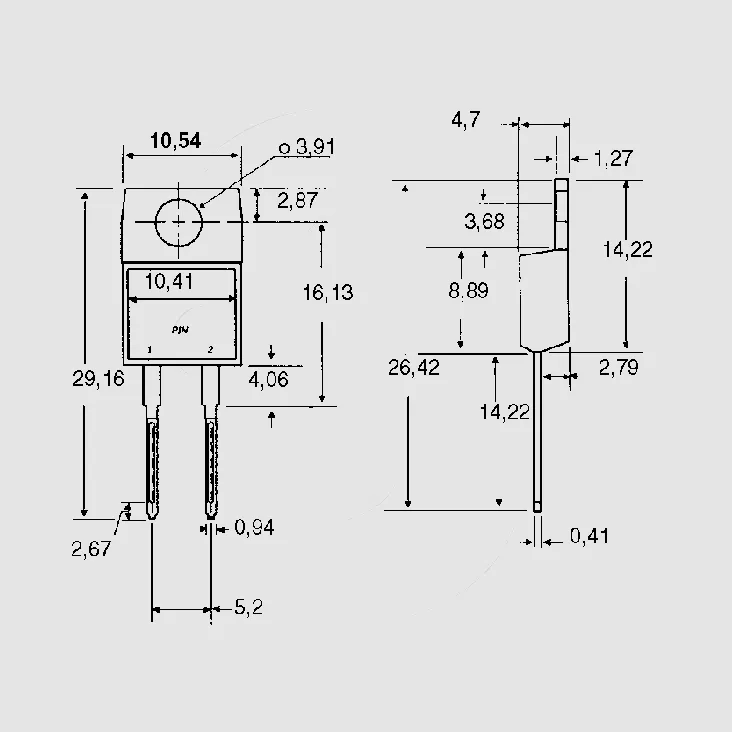

- Diode Case Style: TO-220AC
- No. of Pins: 2
- Current Ifsm: 150A
- Current Irrm: 1A
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -65°C
- Package / Case: TO-220AC
- Termination Type: Through Hole
- Time on for IFSM: 8.3ms
