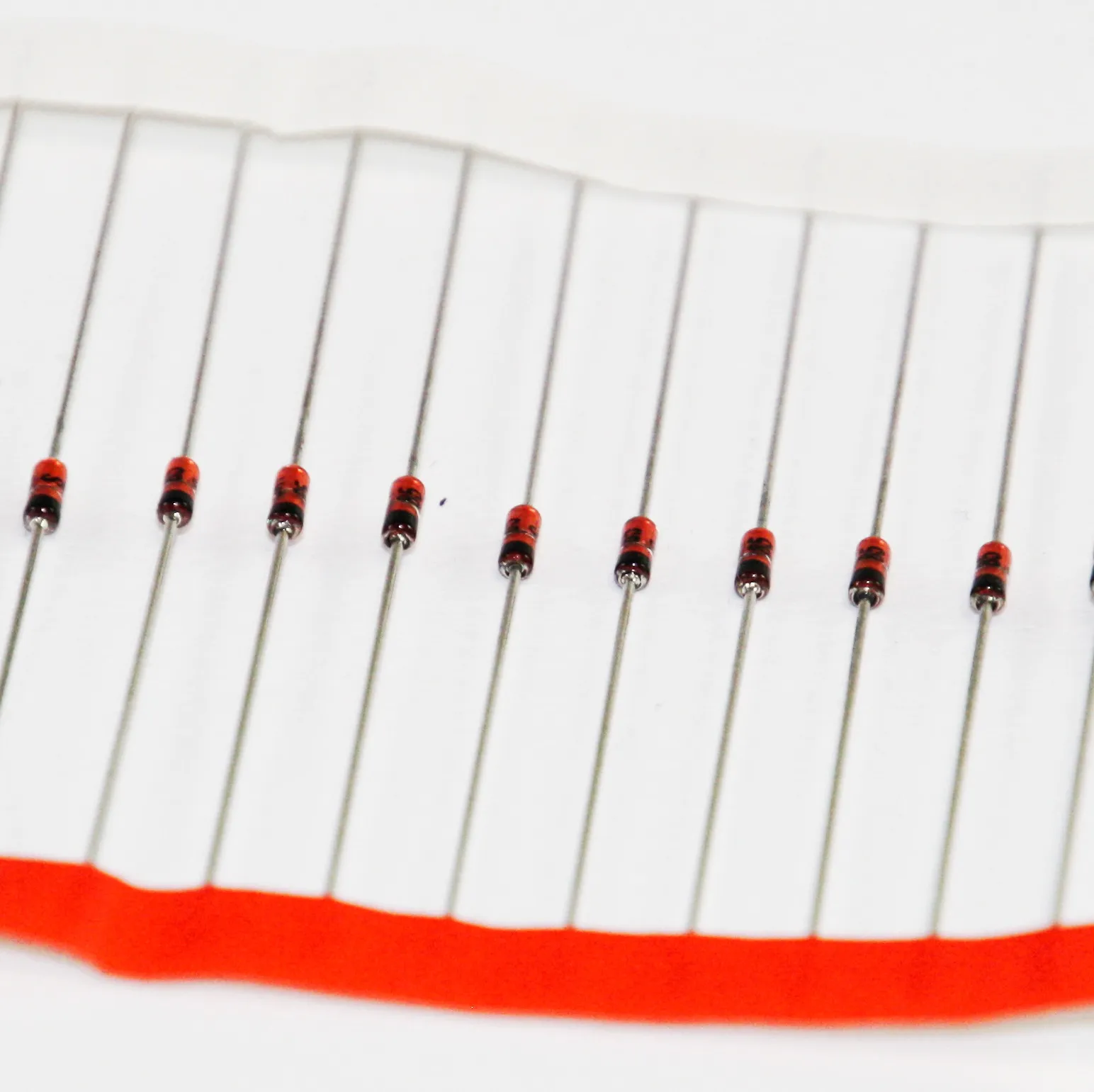

Schottky 30V 0,2A DO35
Varenummer:
78-389
Varekode: BAT85
Vægt: 0 g
24 stk.
på lager
Gruppe:
V3335
Schottky Diodes up to 0,5A Taped
Series: BAT_, SD_
Case: DO35
Schottky Diodes up to 0,5A Taped
Series: BAT_, SD_
Case: DO35
| Technical Specifications |
| Part Nr. | URRM | Ptot | IR/UR | Ctot | trr |
| [V] | [mW] | [µA/V] | [pF] | [ns] | |
| SD101B | 50 | 400 | 0,2/40 | 2,1 | 1 |
| SD103B | 30 | 400 | 5/20 | 50 | 10 |
| BAT41 | 100 | 200 | 0,1/50 | 2 | - |
| BAT42 | 30 | 200 | 0,5/25 | 7 | 5 |
| BAT43 | 30 | 200 | 0,5/25 | 7 | 5 |
| BAT46 | 100 | 150 | 2/50 | 6 | - |
| BAT48 | 40 | 330 | 50/40 | 20 | 10 |
| BAT85 | 30 | - | 2/25 | 10 | 5 |
| URRM = Max. Peak Recurrent Reverse Voltage, Ptot = Power Dissipation, IR = Max. Reverse Current, UR = Max. Reverse Voltage, Ctot = Capacitance, trr = Max. Reverse Recovery Time | |||||
 | |||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
| Various If you have preference for a particular manufacturer, please inquire before placing your order. |
|
