Ultra Fast Diode 200V 5A DO201AD
Varenummer:
78-371
Varekode: EGP50D
Vægt: 1 g
9 stk.
på lager
Gruppe:
V2731
FAGOR ELECTRONICA (FAG) Ultra Fast Rectifier Diodes 5A Glass Passivated Taped
Packing Style: Taped
Series: EGP50_

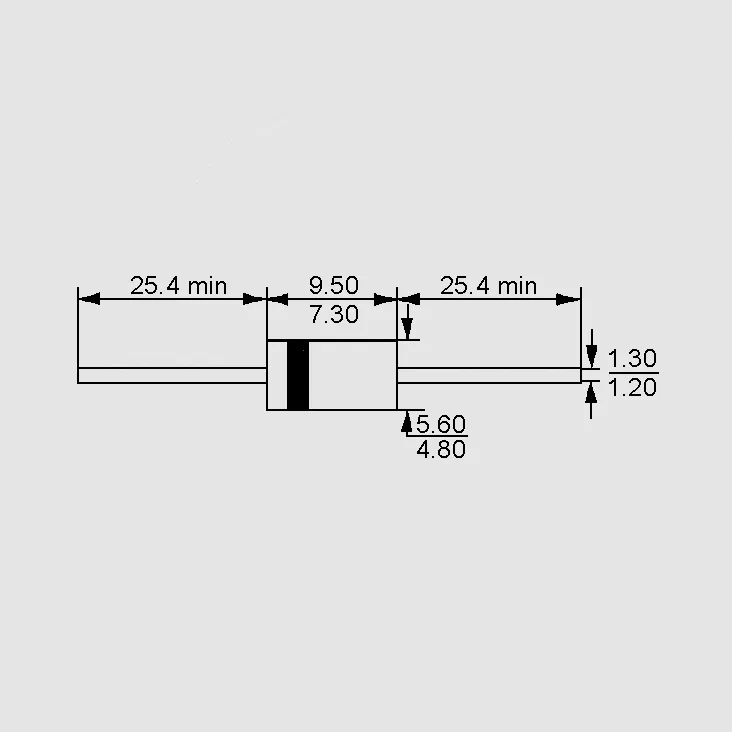

Case: DO201AD
FAGOR ELECTRONICA (FAG) Ultra Fast Rectifier Diodes 5A Glass Passivated Taped
Packing Style: Taped
Series: EGP50_
Case: DO201AD
| Technical Specifications |
| The plastic conforms to UL94V-0 Max. solderability 350C/3,5s |
 |
| Part Nr. | URRM | UF | IF(AV) | IFSM | IR | trr |
| [V] | [V] | [A] | [A] | [µA] | [ns] | |
| EGP50D | 200 | 1,0 | 5,0 | 150 | 5,0 | 50 |
| EGP50G | 400 | 1,25 | 5,0 | 150 | 5,0 | 50 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IFSM = Peak Forward Surge Current, IR = Max. Reverse Current, trr = Max. Reverse Recovery Time | ||||||
| ||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.fagorelectronica.com |
|
