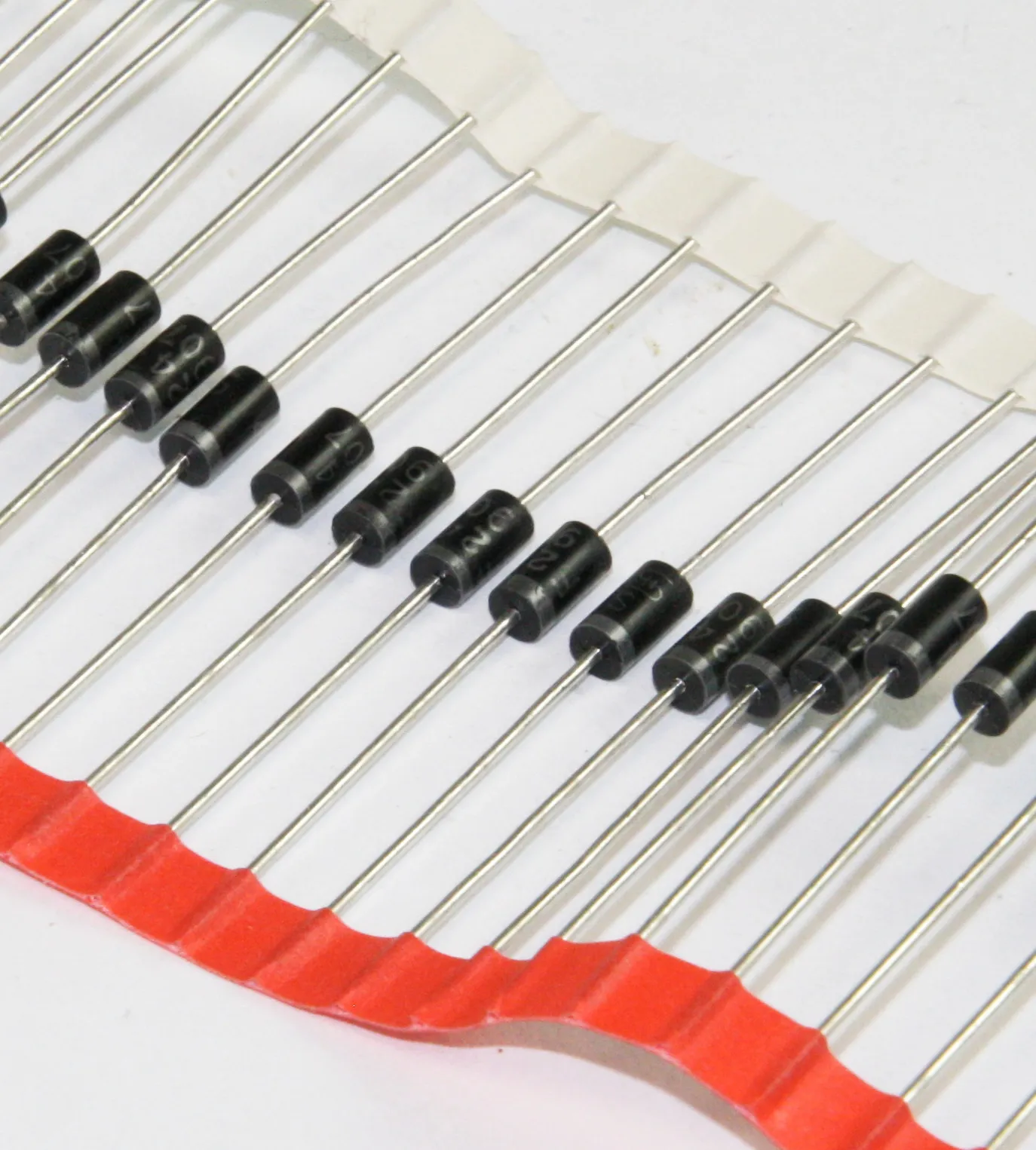

Super Fast Diode 200V 2A DO15
Varenummer:
78-349
Varekode: SF24
Vægt: 0 g
88 stk.
på lager
Gruppe:
V2632
TAIWAN SEMICONDUCTOR (TSC) Super Fast Rectifier Diodes 2A Taped
Series: SF2_
Case: DO15
TAIWAN SEMICONDUCTOR (TSC) Super Fast Rectifier Diodes 2A Taped
Series: SF2_
Case: DO15
| Technical Specifications |
| The plastic conforms to UL94V-0 Axial leads solderable per MIL-STD-202, Meth. 208 Max. solderability 250C/10s |
 |
| Part Nr. | URRM | UF | IF(AV) | IFSM | IR | trr |
| [V] | [V] | [A] | [A] | [µA] | [ns] | |
| SF24 | 200 | 0,95 | 2,0 | 50 | 5,0 | 35 |
| SF28 | 600 | 1,7 | 2,0 | 50 | 5,0 | 35 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IFSM = Peak Forward Surge Current, IR = Max. Reverse Current, trr = Max. Reverse Recovery Time | ||||||
| ||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Produktfiler
