1200V 70A 300W SOT227B
Varenummer:
78-231
Varekode: IXSN35N120AU1
Vægt: 3 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Gruppe:
U4377

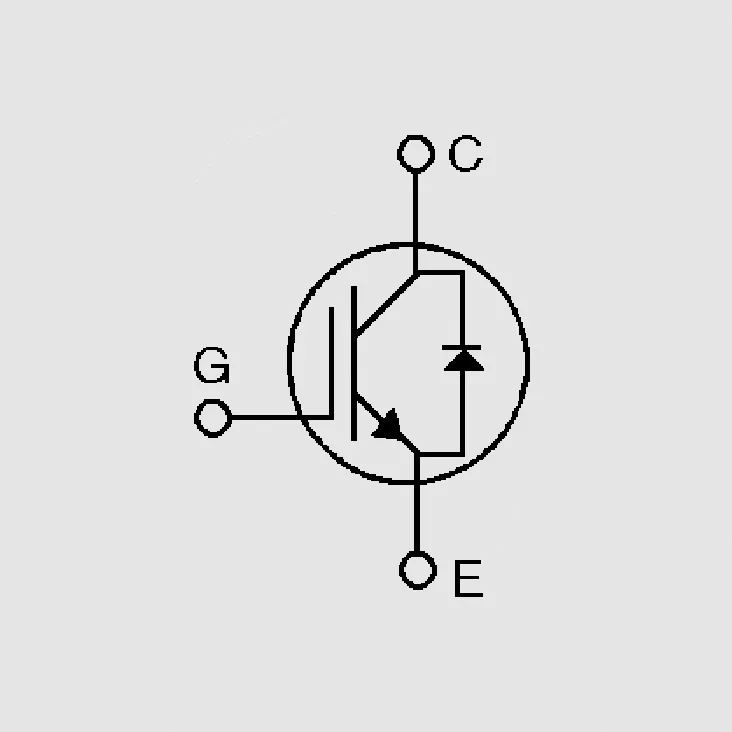

IXYS IGBTs with FRED
Series: IXDN_, IXSN_
Case: SOT227B
IXYS IGBTs with FRED
Series: IXDN_, IXSN_
Case: SOT227B
| Technical Specifications |
| Part Nr. | UCES | IC25 | ICpuls | Ptot | UGE(th) | td(on) | td(off) |
| IX_N_ | [V] | [A] | [A] | [W] | [V] | [ns] | [ns] |
| 55N120D1 | 1200 | 100 | 124 | 450 | 4,5 | 100 | 500 |
| 35N120AU1 | 1200 | 70 | 140 | 300 | 4,0 | 80 | 400 |
| UCES = Max. Collector-Emitter Breakdown Voltage, IC25 = Max. Continuous Collector Current At TC = 25°C, ICpuls = Max. Pulsed Collector Current, Ptot = Power Dissipation, UGE(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | |||||||
 | |||||||
| Additional Products |
| We will also deliver on request all other articles from IXYS, forward orders possible. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.ixys.com |
|
