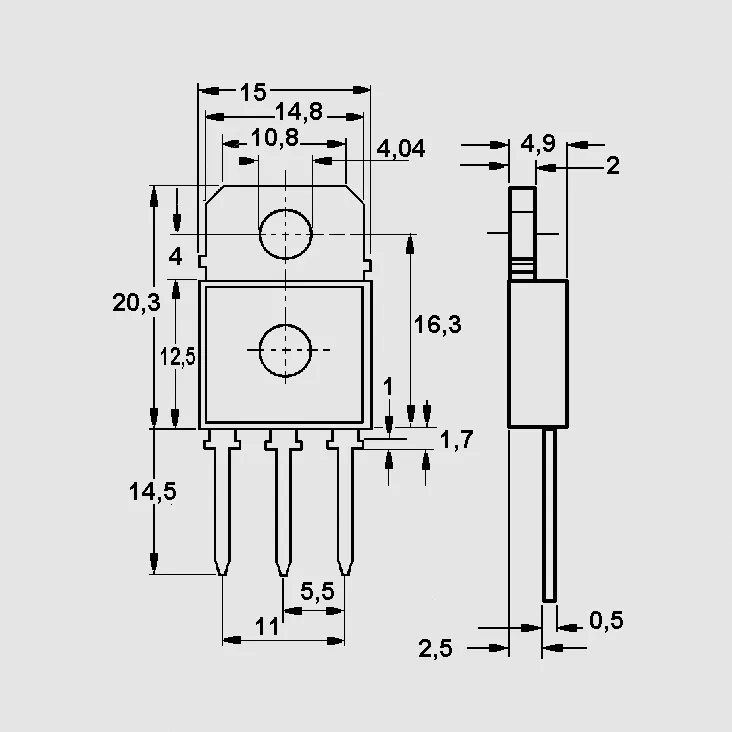

1200V 42A 300W TO218AB

Name: 1200V 42A 300W TO218AB
SKU: 78206
Price: 202.50 DKK
Availability: OutOfStock

Varenummer: 78-206

Varekode: BUP314D

0 stk. på lager

Kontakt os for at få oplyst leveringstid

Vis lignende produkter i kategorien "IGBT"

Technical Specifications


Part Nr.	U_CES	I_C25	I_Cpuls	P_tot	U_GE(th)	t_d(on)	t_d(off)
	[V]	[A]	[A]	[W]	[V]	[ns]	[ns]
BUP212	1200	22	44	125	4,5	55	380
BUP213	1200	32	64	200	4,5	70	400
BUP313	1200	32	64	200	4,5	70	400
BUP313D	1200	32	64	200	4,5	70	400
BUP314	1200	52	104	300	4,5	75	420
BUP314D	1200	42	84	300	4,5	75	420
U_CES = Max. Collector-Emitter Breakdown Voltage, I_C25 = Max. Continuous Collector Current At T_C = 25°C, I_Cpuls = Max. Pulsed Collector Current, P_tot = Power Dissipation, U_GE(th) = Min. Gate Threshold Voltage, t_d(on) = Turn-On Delay Time, t_d(off) = Turn-Off Delay Time, T_C = Case Temperature

Manufacturer

Infineon
http://www.infineon.com

Inkl. moms

Kr. 202,50

Produktfiler

78-206

/ BUP314D

0 stk. på lager

Kontakt os for at få oplyst leveringstid

Technical Specifications


Part Nr.	U_CES	I_C25	I_Cpuls	P_tot	U_GE(th)	t_d(on)	t_d(off)
	[V]	[A]	[A]	[W]	[V]	[ns]	[ns]
BUP212	1200	22	44	125	4,5	55	380
BUP213	1200	32	64	200	4,5	70	400
BUP313	1200	32	64	200	4,5	70	400
BUP313D	1200	32	64	200	4,5	70	400
BUP314	1200	52	104	300	4,5	75	420
BUP314D	1200	42	84	300	4,5	75	420
U_CES = Max. Collector-Emitter Breakdown Voltage, I_C25 = Max. Continuous Collector Current At T_C = 25°C, I_Cpuls = Max. Pulsed Collector Current, P_tot = Power Dissipation, U_GE(th) = Min. Gate Threshold Voltage, t_d(on) = Turn-On Delay Time, t_d(off) = Turn-Off Delay Time, T_C = Case Temperature

Manufacturer

Infineon
http://www.infineon.com
