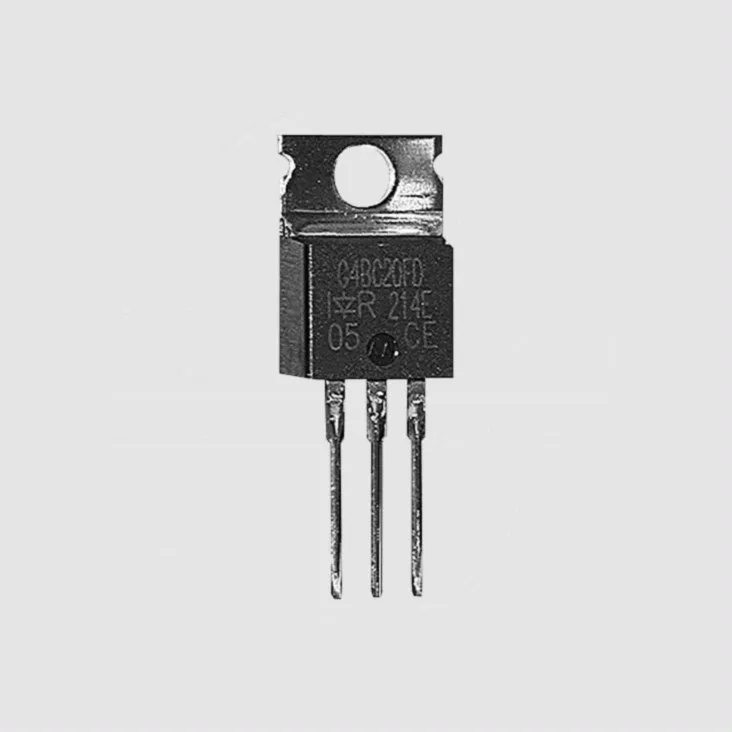

600V 9A 38W TO220AB

Varenummer: 78-166
Varekode: IRG4BC10KDPBF
0 stk. på lager
Kontakt os for at få oplyst leveringstid
Vis lignende produkter i kategorien "IGBT"
Technical Specifications
Part Nr.
 UCES
 IC25
 ICpuls
 Ptot
 UGE(th)
 td(on)
 td(off)
IRG4B/B4_
 [V]
 [A]
 [A]
 [W]
 [V]
 [ns]
 [ns]
C10KDPBF 600
 9
 18
 38
 3,0
 49
 97
C10UDPBF 600
 8,5
 34
 38
 3,0
 40
 87
C15UDPBF 600
 14
 42
 49
 3,0
 17
 160
C20FDPBF 600
 16
 64
 60
 3,0
 43
 240
C20KDPBF 600
 16
 32
 60
 3,0
 54
 180
C20SDPBF 600
 19
 38
 60
 3,0
 62
 690
C20UDPBF 600
 13
 52
 60
 3,0
 39
 93
C30FDPBF 600
 31
 120
 100
 3,0
 42
 230
C30KDPBF 600
 28
 58
 100
 3,0
 60
 160
C30UDPBF 600
 23
 92
 100
 3,0
 40
 91
045DPBF 600
 12
 20
 77
 4,0
 27
 75
056DPBF 600
 24
 48
 140
 4,0
 31
 83
059DPBF 600
 8
 16
 56
 4,0
 25
 65
060DPBF 600
 16
 32
 99
 4,0
 30
 95
061DPBF 600
 36
 72
 206
 4,0
 40
 105
062DPBF 600
 48
 96
 250
 4,0
 41
 104
064DPBF 600
 20
 40
 101
 4,0
 27
 79
UCES = Max. Collector-Emitter Breakdown Voltage, IC25 = Max. Continuous Collector Current At TC = 25°C, ICpuls = Max. Pulsed Collector Current, Ptot = Power Dissipation, UGE(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature
Manufacturer

http://www.irf.com
Inkl. moms
Kr. 22,50
  • v/10 – Kr. 16,88
  • v/25 – Kr. 11,25
  • v/100 – Kr. 9,56
