N-Ch 55V 1,9A 2,1W 0,16R SOT223
Varenummer:
78-145
Varekode: IRFL014NPBF
Vægt: 0 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Gruppe:
U8725
INTERNATIONAL RECTIFIER (IR) SMD Power MOSFETs
Series: IRFL_, IRLL_

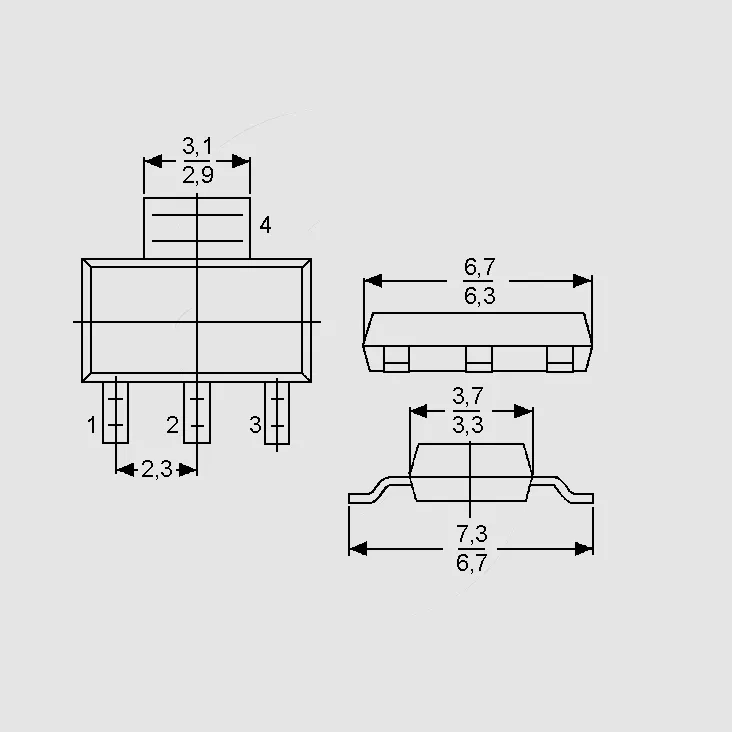

Case: SOT223
INTERNATIONAL RECTIFIER (IR) SMD Power MOSFETs
Series: IRFL_, IRLL_
Case: SOT223
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| IRFL014NPBF | 55 | 1,9 | 0,160 | 2,0 | 6,6 | 12 |
| IRFL024NPBF | 55 | 2,8 | 0,075 | 2,0 | 8,1 | 22,2 |
| IRFL4105PBF | 55 | 3,7 | 0,045 | 2,0 | 7,1 | 19 |
| IRLL014NPBF | 55 | 2,0 | 0,140 | 1,0 | 5,1 | 14 |
| IRLL024NPBF | 55 | 3,1 | 0,065 | 1,0 | 7,4 | 18 |
| IRLL2705PBF | 55 | 3,8 | 0,040 | 1,0 | 6,2 | 35 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. |
|
| Terms of Delivery |
| Mimimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.irf.com |
|
