2xN-Ch 30V 4,9A 2,0W 0,05R SO8 SMD
Varenummer:
78-119
Varekode: IRF7303PBF
Vægt: 0 g
5 stk.
på lager
Bestil nu for afsendelse i morgen
IRF7303PBF - International Rectifier MOSFET, DUAL, NN, LOGIC, SO-8
Specifications:
- Continuous Drain Current Id: 4.9 A
- Current Id Max: 4.9 A
- Current Temperature: 25°C
- Drain Source Voltage Vds: 30 V

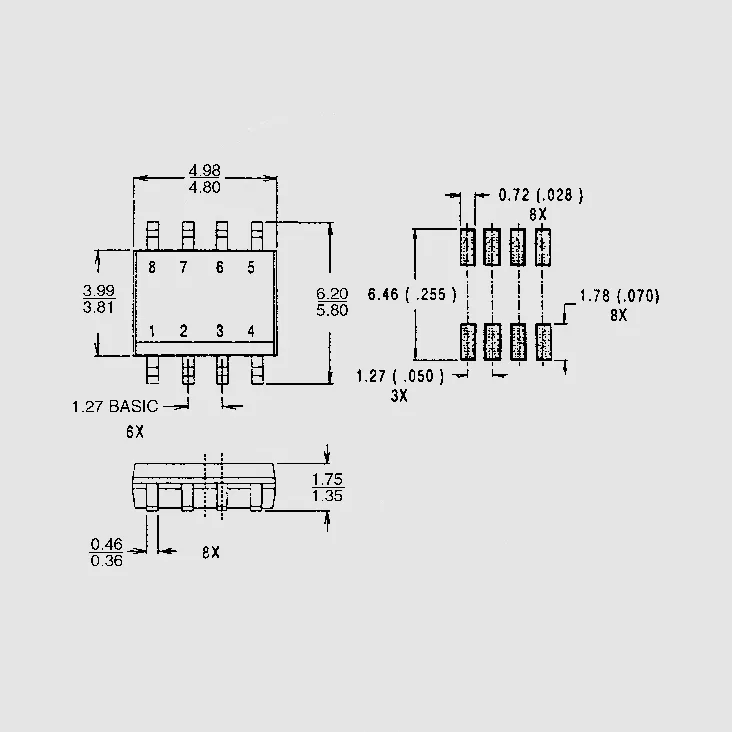

- External Depth: 5.2 mm
- External Length / Height: 1.75 mm
- External Width: 4.05 mm
- Full Power Rating Temperature: 25°C
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -55°C
- Module Configuration: Dual
- Mounting Type: SMD
- Number of Pins: 8
- Number of Transistors: 2
- On Resistance Rds(on): 50 MOhm
- Package / Case: SOIC
- Pin Configuration: c
- Pin Format: 1 S1
- Power Dissipation Pd: 2 W
- Pulse Current Idm: 20 A
- Rds(on) Test Voltage Vgs: 10 V
- Row Pitch: 6.3 mm
- SMD Marking: F7303
- SVHC: No SVHC (15-Dec-2010)
- Threshold Voltage Vgs Typ: 1 V
- Transistor Case Style: SOIC
- Transistor Polarity: N Channel
- Voltage Vds Typ: 30 V
- Voltage Vgs Max: 1 V
- Voltage Vgs Rds on Measurement: 10 V
RoHS: Yes
