N-Ch 600V 2,5A 35W 2,2R TO220-Fullpak
Varenummer:
78-036
Varekode: IRFIBC30GPBF
Vægt: 3 g
10 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Gruppe:
U8384
VISHAY (VIS) Power MOSFETs
Series: IRFI_

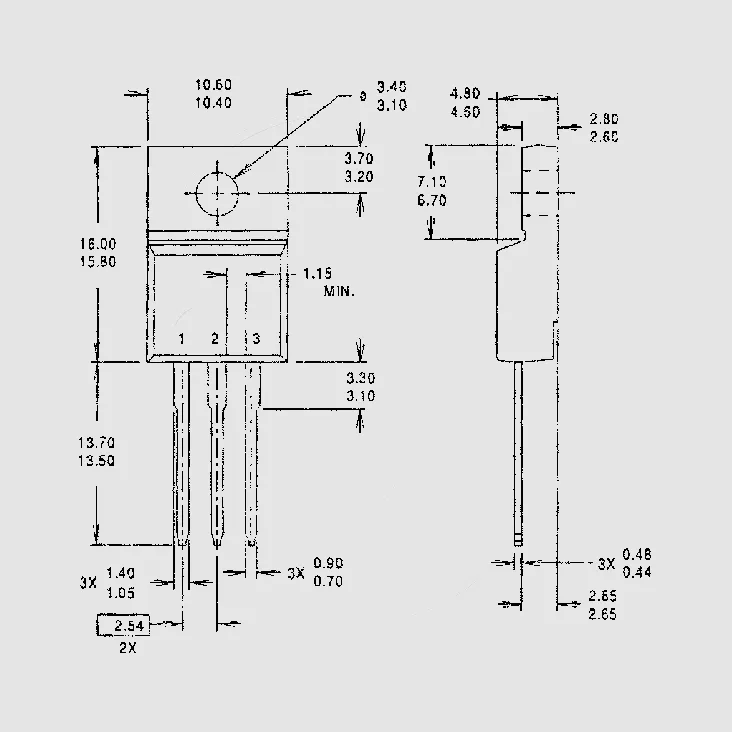

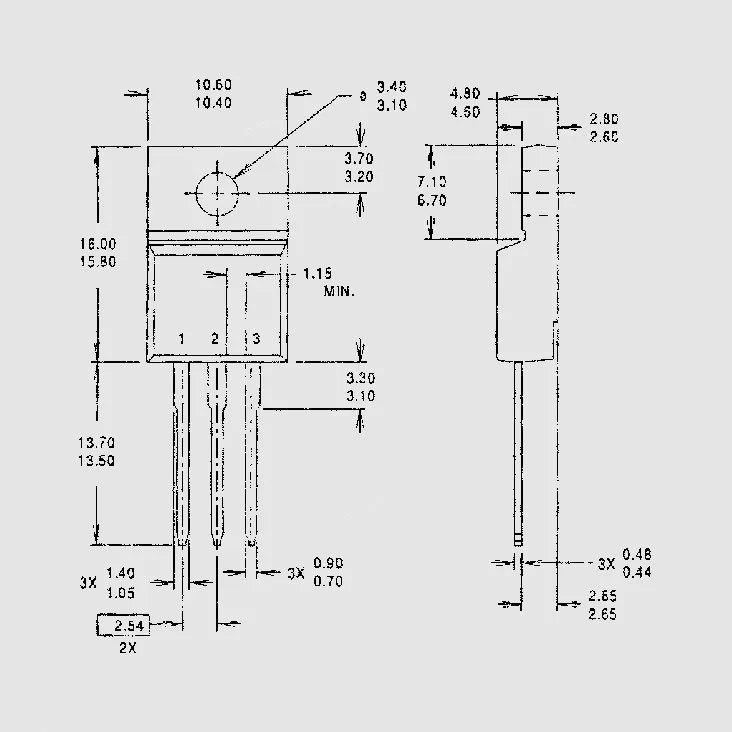

Case: TO220-Fullpak
VISHAY (VIS) Power MOSFETs
Series: IRFI_
Case: TO220-Fullpak
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| IRFI640GPBF | 200 | 9,8 | 0,180 | 2,0 | 14 | 45 |
| IRFI740GPBF | 400 | 5,4 | 0,550 | 2,0 | 14 | 54 |
| IRFI840GPBF | 500 | 4,6 | 0,850 | 2,0 | 14 | 55 |
| IRFIB7N50APBF | 500 | 6,6 | 0,520 | 2,0 | 14 | 32 |
| IRFIBC30GPBF | 600 | 2,5 | 2,200 | 2,0 | 11 | 35 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". |
|
| Manufacturer |
| Vishay http://www.vishay.com |
|
