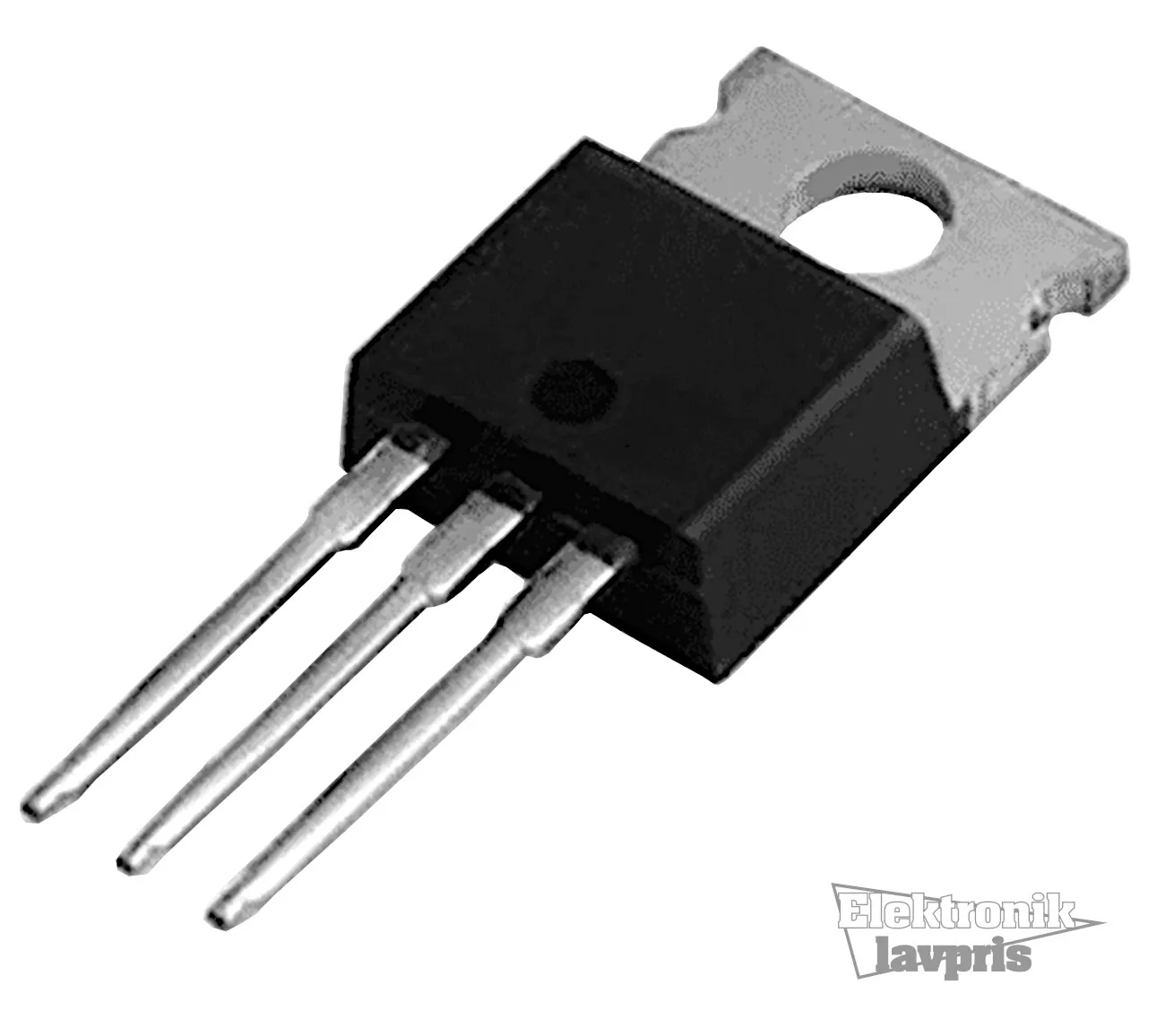

Transistor MOSFET, P-Ch, 55V, 19A, 68W, 0,10R, TO220AB
Varenummer:
77-953
Varekode: IRF9Z34NPBF
Vægt: 2 g
9 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 6320 stk. kan skaffes søndag d. 1/11
Specifikationer
| Komponenthus | TO220 |
|---|---|
| Transistor polaritet | P-Ch |
| Produkt | MOSFET |
| Effekt, max. | 68 W |
| Drain-Source spænding, max | 55 V |
| Continuous drain current, max | 19 A |
| Drain-Source On-modstand, Rds(on) | 0.1 Ω |
MOSFET, P, -55V, -17A, TO-220 transisitor
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 17A
- Drain Source Voltage Vds: 55V
- On Resistance Rds(on): 100mohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs Typ: -4V
- Power Dissipation Pd: 56W
- Transistor Case Style: TO-220AB
- No. of Pins: 3
- SVHC: No SVHC (18-Jun-2012)
- Current Id Max: -19A
- Current Temperature: 25°C
- Full Power Rating Temperature: 25°C
- Junction to Case Thermal Resistance A: 2.7°C/W
- Lead Spacing: 2.54mm
- No. of Transistors: 1
- Package / Case: TO-220AB
- Pin Configuration: a
- Pin Format: 1 g
- 2 d/tab
- 3 s
- Power Dissipation Pd: 56W
- Power Dissipation Pd: 56W
- Pulse Current Idm: 68A
- Termination Type: Through Hole
- Voltage Vds: 55V
- Voltage Vds Typ: -55V
- Voltage Vgs Max: -4V
- Voltage Vgs Rds on Measurement: -10V
Inkl. moms
Kr. 16,01
- v/10 – Kr. 9,43
- v/25 – Kr. 7,38
- v/100 – Kr. 5,61
- v/1000 – Kr. 4,09
Produktfiler
Transistor MOSFET, P-Ch, 55V, 19A, 68W, 0,10R, TO220AB
77-953
/ IRF9Z34NPBF
9 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Ved bestilling nu, får vi dem hjem søndag d. 1/11
Specifikationer
- Komponenthus TO220
- Transistor polaritet P-Ch
- Produkt MOSFET
- Effekt, max. 68 W
- Drain-Source spænding, max 55 V
- Continuous drain current, max 19 A
- Drain-Source On-modstand, Rds(on) 0.1 Ω
MOSFET, P, -55V, -17A, TO-220 transisitor
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 17A
- Drain Source Voltage Vds: 55V
- On Resistance Rds(on): 100mohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs Typ: -4V
- Power Dissipation Pd: 56W
- Transistor Case Style: TO-220AB
- No. of Pins: 3
- SVHC: No SVHC (18-Jun-2012)
- Current Id Max: -19A
- Current Temperature: 25°C
- Full Power Rating Temperature: 25°C
- Junction to Case Thermal Resistance A: 2.7°C/W
- Lead Spacing: 2.54mm
- No. of Transistors: 1
- Package / Case: TO-220AB
- Pin Configuration: a
- Pin Format: 1 g
- 2 d/tab
- 3 s
- Power Dissipation Pd: 56W
- Power Dissipation Pd: 56W
- Pulse Current Idm: 68A
- Termination Type: Through Hole
- Voltage Vds: 55V
- Voltage Vds Typ: -55V
- Voltage Vgs Max: -4V
- Voltage Vgs Rds on Measurement: -10V
