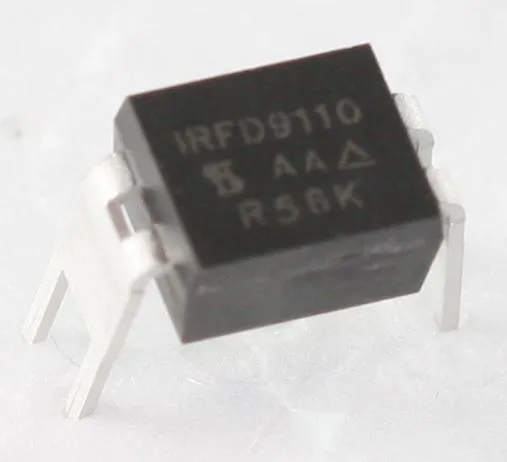

P-Ch 100V 0,7A 1,3W 1,2R DIP4
Varenummer:
77-919
Varekode: IRFD9110PBF
Vægt: 0 g
18 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Gruppe:
U8381
VISHAY (VIS) Power MOSFETs
Series: IRFD_, IRLD_
Case: DIP4
VISHAY (VIS) Power MOSFETs
Series: IRFD_, IRLD_
Case: DIP4
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |

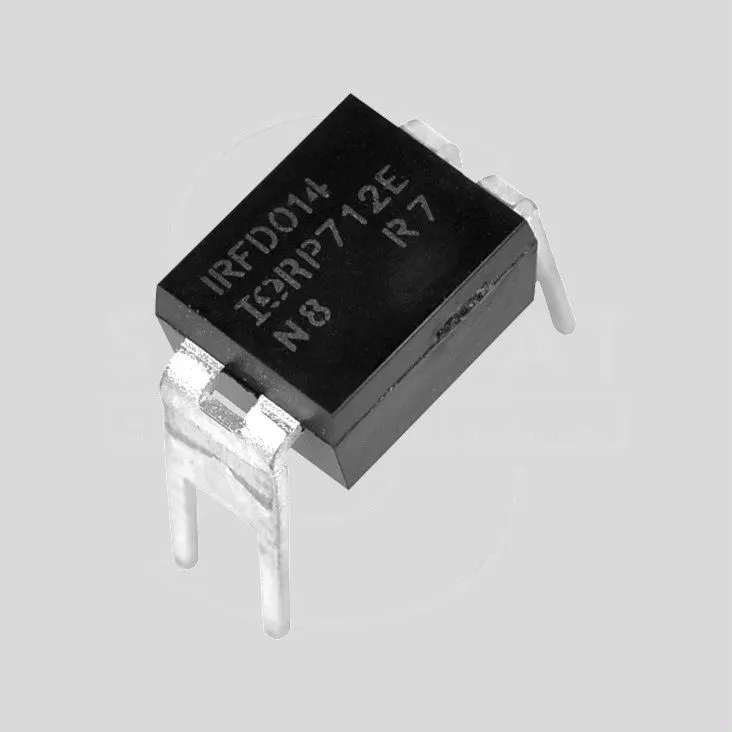

| IRFD014PBF | 60 | 1,7 | 0,200 | 2,0 | 10 | 13 |
| IRFD024PBF | 60 | 2,5 | 0,100 | 2,0 | 13 | 25 |
| IRFD110PBF | 100 | 1,0 | 0,540 | 2,0 | 6,9 | 15 |
| IRFD120PBF | 100 | 1,3 | 0,270 | 2,0 | 6,8 | 18 |
| IRFD210PBF | 200 | 0,6 | 1,500 | 2,0 | 8,2 | 14 |
| IRFD220PBF | 200 | 0,8 | 0,800 | 2,0 | 7,2 | 19 |
| IRFD420PBF | 500 | 0,37 | 3,000 | 2,0 | 8 | 33 |
| IRFD9014PBF | 60 | 1,1 | 0,500 | 2,0 | 11 | 10 |
| IRFD9024PBF | 60 | 1,6 | 0,280 | 2,0 | 13 | 15 |
| IRFD9110PBF | 100 | 0,7 | 1,200 | 2,0 | 10 | 15 |
| IRFD9120PBF | 100 | 1,0 | 0,600 | 2,0 | 9,6 | 21 |
| IRFD9210PBF | 200 | 0,4 | 3,000 | 2,0 | 8 | 11 |
| IRLD014PBF | 60 | 1,7 | 0,200 | 1,0 | 9,3 | 17 |
| IRLD024PBF | 60 | 2,5 | 0,100 | 1,0 | 11 | 23 |
| IRLD110PBF | 100 | 1,0 | 0,540 | 1,0 | 9,3 | 16 |
| IRLD120PBF | 100 | 1,3 | 0,270 | 1,0 | 9,8 | 21 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633 |
|
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". |
|
| Manufacturer |
| Vishay http://www.vishay.com |
|
