N-Ch 200V 58A 300W 0,04R TO247AD

Varenummer: 77-882
Varekode: IXFH58N20
0 stk. på lager
Kontakt os for at få oplyst leveringstid
Vis lignende produkter i kategorien "MOSFET"
Specifikationer

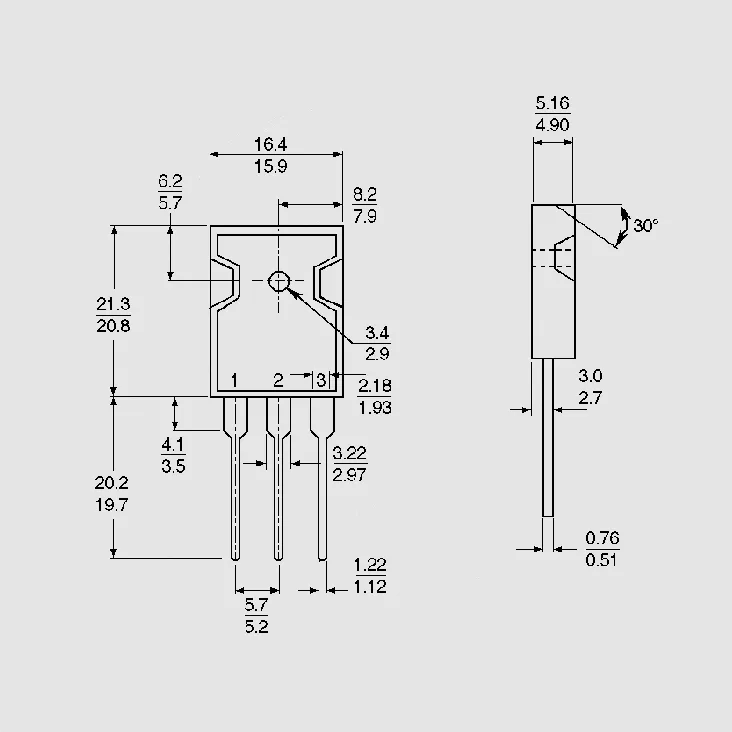

Komponenthus TO247
Transistor polaritet N-Ch
Produkt MOSFET
Continuous drain current, max 58  A
Effekt, max. 300  W
Drain-Source spænding, max 200  V
Drain-Source On-modstand, Rds(on) 0.04  Ω
Technical Specifications
Part Nr.
 UDS
 ID25
 RDS(on)
 UGS(th)
 td(on)
 td(off)
  [V]
 [A]
 W
 [V]
 [ns]
 [ns]
IXFH6N100 1000
 6,0
 2,000
 2,0
 35
 100
IXFH12N100Q 1000
 12
 1,050
 2,5
 20
 40
IXFH13N50 500
 13
 0,400
 2,0
 18
 76
IXFH13N80 800
 13
 0,800
 2,0
 20
 63
IXFH15N80Q 800
 15
 0,600
 2,0
 18
 53
IXFH21N50 500
 21
 0,250
 2,0
 16
 65
IXFH24N50 500
 24
 0,230
 2,0
 16
 65
IXFH26N50Q 500
 26
 0,200
 2,5
 28
 55
IXFH26N60Q 600
 26
 0,250
 2,5
 30
 80
IXFH32N50 500
 32
 0,150
 2,0
 35
 110
IXFH40N30Q 300
 40
 0,080
 2,0
 20
 40
IXFH50N20 200
 50
 0,045
 2,0
 18
 72
IXFH58N20 200
 58
 0,040
 2,0
 18
 72
IXFH75N10 100
 75
 0,020
 2,0
 20
 80
IXTH7P50 500
 7,0
 1,500
 3,0
 33
 35
IXTH11P50 500
 11
 0,750
 3,0
 33
 35
IXTH21N50 500
 21
 0,250
 2,0
 24
 65
IXTH40N30 300
 40
 0,085
 2,0
 24
 75
UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature
Additional Products
We will also deliver on request all other articles from IXYS, forward orders possible.
Manufacturer

http://www.ixys.com
Inkl. moms
Kr. 119,54
  • v/10 – Kr. 99,61
  • v/25 – Kr. 87,66
  • v/100 – Kr. 79,69
