N-Ch 500V 26A 300W 0,20R TO247AD

Varenummer: 77-877
Varekode: IXFH26N50Q
Vægt: 8 g
0 stk. på lager
Kontakt os for at få oplyst leveringstid
Vis lignende produkter i kategorien "MOSFET"
Specifikationer
Komponenthus TO247
Transistor polaritet N-Ch
Produkt MOSFET
Drain-Source spænding, max 500  V
Effekt, max. 300  W
Continuous drain current, max 26  A
Drain-Source On-modstand, Rds(on) 0.2  Ω
Gruppe: U8342

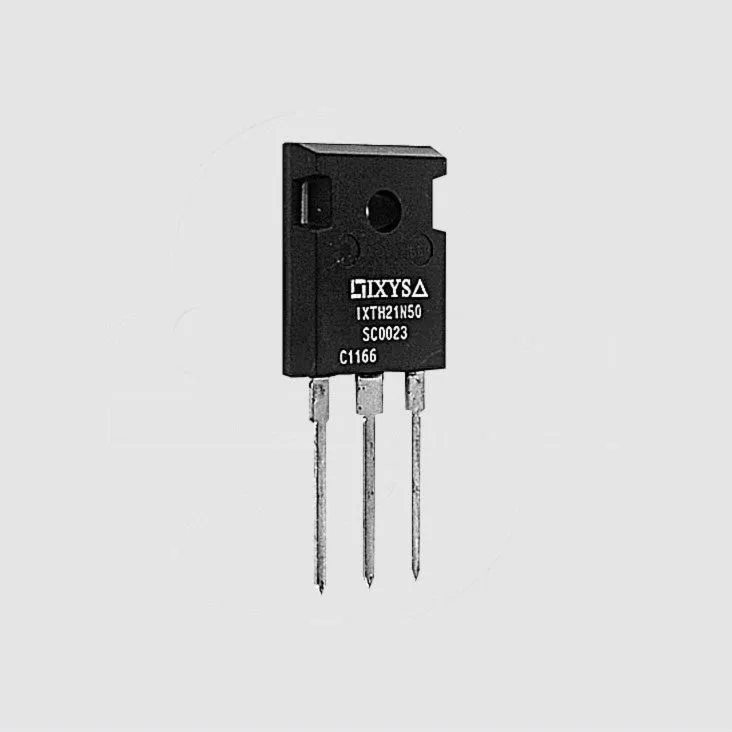

IXYS Power MOSFETs
Series: IXFH_, IXTH_

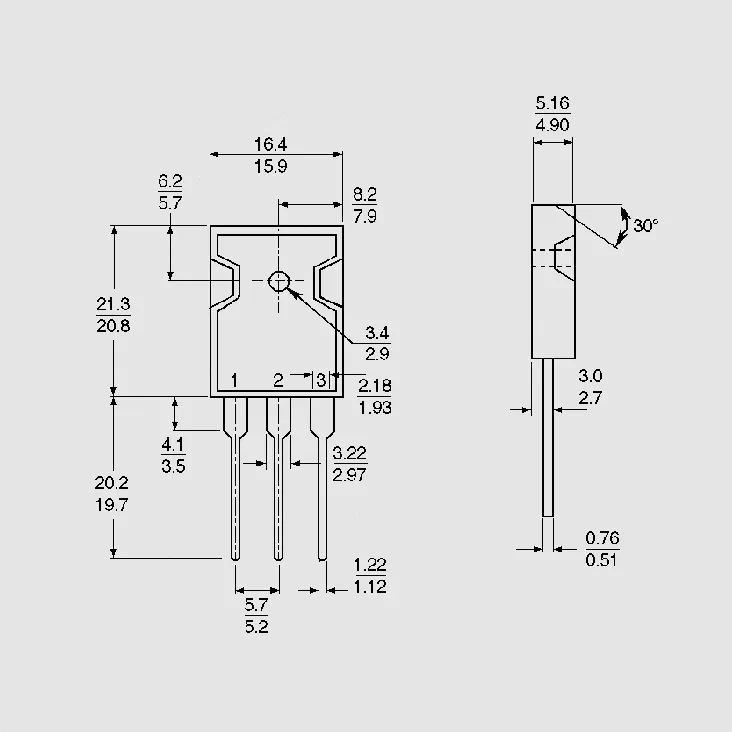

Case: TO247AD
Technical Specifications
Part Nr.
UDS
ID25
RDS(on)
UGS(th)
td(on)
td(off)
 [V]
[A]
W
[V]
[ns]
[ns]
IXFH12N100Q1000
12
1,050
2,5
20
40
IXFH13N50500
13
0,400
2,0
18
76
IXFH13N80800
13
0,800
2,0
20
63
IXFH21N50500
21
0,250
2,0
16
65
IXFH24N50500
24
0,230
2,0
16
65
IXFH26N50Q500
26
0,200
2,5
28
55
IXFH26N60Q600
26
0,250
2,5
30
80
IXFH32N50500
32
0,150
2,0
35
110
IXFH40N30Q300
40
0,080
2,0
20
40
IXFH50N20200
50
0,045
2,0
18
72
IXTH7P50500
7,0
1,500
3,0
33
35
IXTH11P50500
11
0,750
3,0
33
35
IXTH21N50500
21
0,250
2,0
24
65
IXTH40N30300
40
0,085
2,0
24
75
UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature
Note
You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211.
Additional Products
We will also deliver on request all other articles from IXYS, forward orders possible.
Terms of Delivery
Minimum order quantity: please see price list column "MOQ".
Manufacturer

http://www.ixys.com
Inkl. moms
Kr. 116,73
  • v/10 – Kr. 97,27
  • v/25 – Kr. 85,59
  • v/100 – Kr. 77,81
