N-Ch 42V 28A 83W 0,035R TO220
Varenummer:
77-800
Varekode: VNP28N04
Vægt: 3 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Specifikationer
| Komponenthus | TO220 |
|---|---|
| Transistor polaritet | N-Ch |
| Produkt | MOSFET |
| Effekt, max. | 83 W |
| Drain-Source spænding, max | 42 V |
| Continuous drain current, max | 28 A |
| Drain-Source On-modstand, Rds(on) | 0.035 Ω |
Gruppe:
U8373
ST MICROELECTRONICS (STM) Power MOSFETs Autoprotected
Series: VNP_

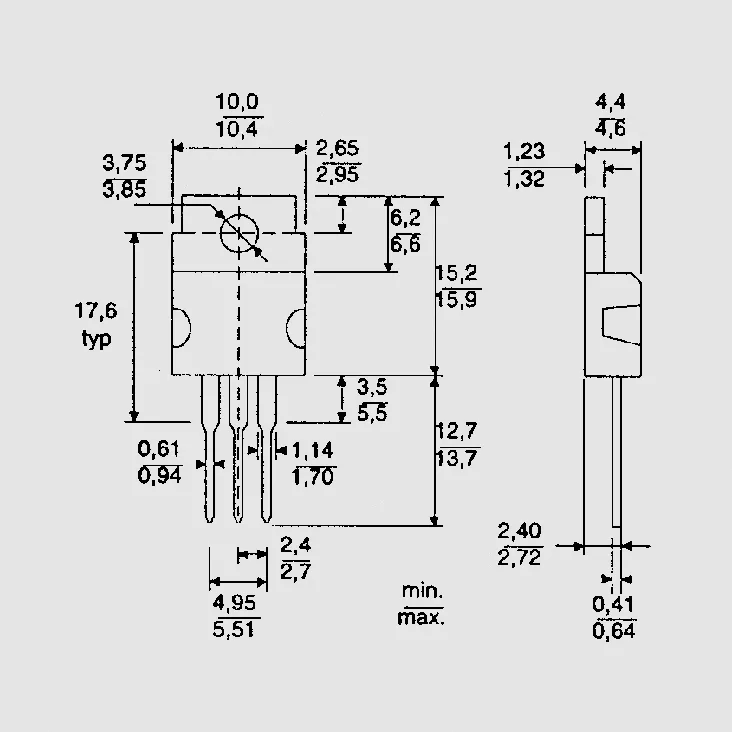

Case: TO220
ST MICROELECTRONICS (STM) Power MOSFETs Autoprotected
Series: VNP_
Case: TO220
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| VNP5N07 | 70 | 5,0 | 0,200 | 0,8 | 50 | 150 |
| VNP10N07 | 70 | 10 | 0,100 | 0,8 | 50 | 230 |
| VNP20N07 | 42 | 20 | 0,050 | 0,8 | 90 | 430 |
| VNP28N04 | 42 | 28 | 0,035 | 0,8 | 100 | 400 |
| VNP35N07 | 70 | 35 | 0,028 | 0,8 | 100 | 650 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in the blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
| STM http://www.st.com |
|
