N-Ch 20V 2,4A 1,25W 0,065R SOT23
Varenummer:
77-746
Varekode: TSM2302CX
Vægt: 0 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Gruppe:
U8763
TAIWAN SEMICONDUCTOR (TSC) SMD Power MOSFETs
Series: TSM_

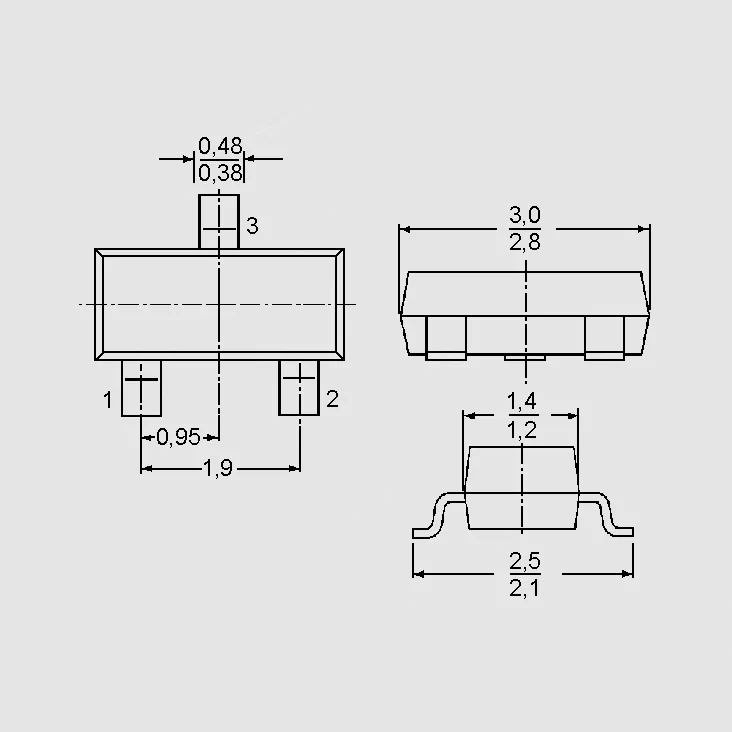

Case: SOT23
TAIWAN SEMICONDUCTOR (TSC) SMD Power MOSFETs
Series: TSM_
Case: SOT23
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| TSM2301CX | 20 | 2,3 | 0,130 | 0,45 | 5 | 95 |
| TSM2302CX | 20 | 2,4 | 0,065 | 0,45 | 7 | 16 |
| TSM2306CX | 30 | 3,5 | 0,057 | 1,0 | 4,2 | 13 |
| TSM2307CX | 30 | 3,0 | 0,080 | 1,0 | 10 | 27 |
| TSM2310CX | 20 | 4,0 | 0,030 | 0,6 | 15 | 40 |
| TSM2311CX | 20 | 4,0 | 0,055 | 0,45 | 18 | 95 |
| TSM2312CX | 20 | 5,0 | 0,033 | 0,45 | 15 | 48 |
| TSM2313CX | 20 | 3,3 | 0,070 | 0,6 | 22 | 45 |
| TSM2314CX | 20 | 4,9 | 0,033 | 0,45 | 0,53 | 13,5 |
| TSM2318CX | 40 | 3,9 | 0,045 | 1,0 | 5 | 20 |
| TSM2323CX | 20 | 4,7 | 0,039 | 0,4 | 25 | 71 |
| TSM3400CX | 30 | 5,8 | 0,028 | 0,7 | 3,3 | 26 |
| TSM3401CX | 30 | 3,0 | 0,060 | 1,0 | 10,8 | 22,53 |
| TSM3404CX | 30 | 5,8 | 0,028 | 1,0 | 7,42 | 20,4 |
| TSM2N7002KCX | 60 | 0,3 | 5,000 | 1,0 | 25 | 35 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3000 pieces: 100 pieces on tape segment without leader tape and reel; orders of 3000 pieces: delivery on reel if requested. Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
