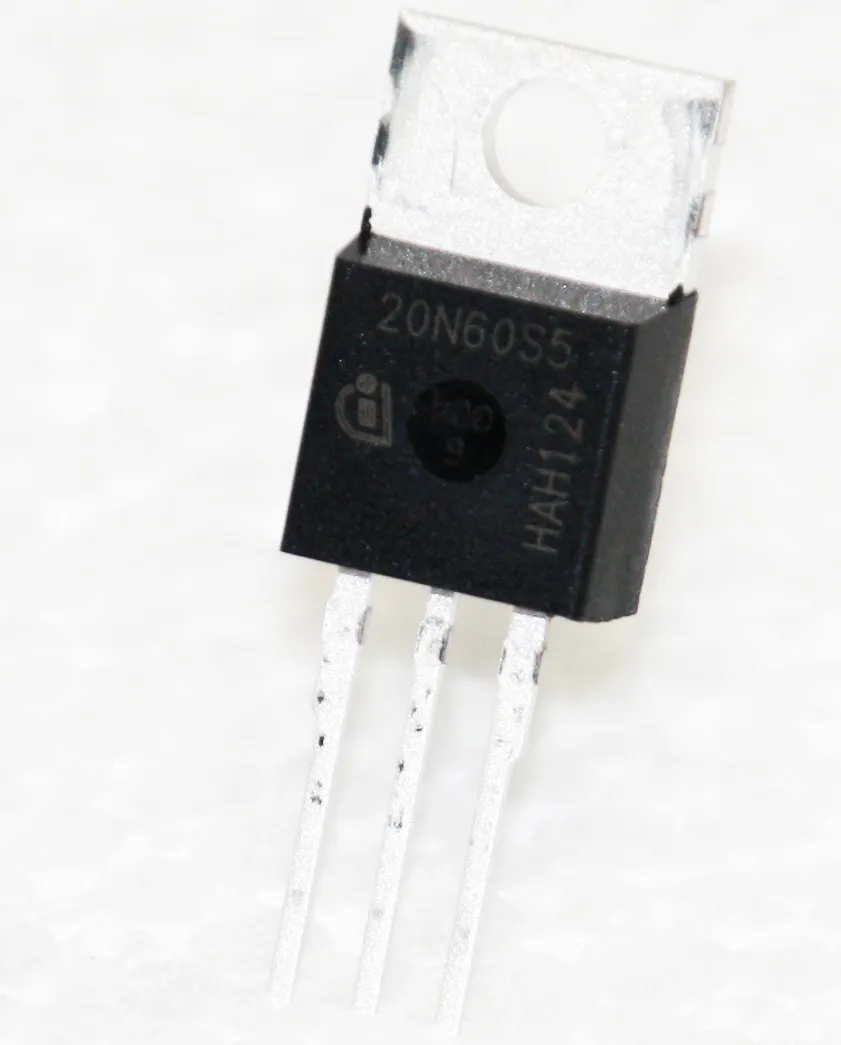

N-Ch 600V 20A 208W 0,19R TO220
Varenummer:
77-742
Varekode: SPP20N60S5
Vægt: 2 g
1 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 923 stk. kan skaffes søndag d. 1/11
Specifikationer

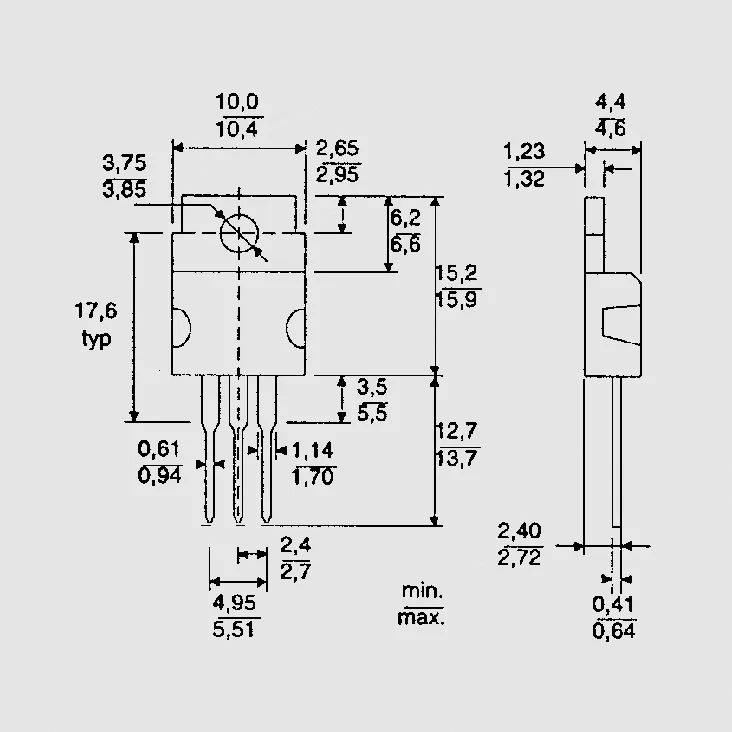

| Komponenthus | TO220 |
|---|---|
| Transistor polaritet | N-Ch |
| Produkt | MOSFET |
| Drain-Source spænding, max | 600 V |
| Effekt, max. | 208 W |
| Continuous drain current, max | 20 A |
| Drain-Source On-modstand, Rds(on) | 0.19 Ω |
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| BUZ11 | 50 | 30 | 0,040 | 2,1 | 30 | 180 |
| SPA08N80C3 | 800 | 8,0 | 0,650 | 2,1 | 25 | 65 |
| SPP06N80C3 | 800 | 6,0 | 0,900 | 2,1 | 25 | 72 |
| SPP08P06P | 60 | 8,8 | 0,300 | 2,1 | 16 | 48 |
| SPP20N60S5 | 600 | 20 | 0,190 | 3,5 | 120 | 140 |
| SPP80P06P | 60 | 80 | 0,023 | 2,1 | 24 | 56 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". |
|
| Manufacturer |
| Fairchild / Infineon http://www.fairchildsemi.com http://www.infineon.com.com |
|
Produktfiler
N-Ch 600V 20A 208W 0,19R TO220
77-742
/ SPP20N60S5
1 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Ved bestilling nu, får vi dem hjem søndag d. 1/11
Specifikationer
- Komponenthus TO220
- Transistor polaritet N-Ch
- Produkt MOSFET
- Drain-Source spænding, max 600 V
- Effekt, max. 208 W
- Continuous drain current, max 20 A
- Drain-Source On-modstand, Rds(on) 0.19 Ω
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| BUZ11 | 50 | 30 | 0,040 | 2,1 | 30 | 180 |
| SPA08N80C3 | 800 | 8,0 | 0,650 | 2,1 | 25 | 65 |
| SPP06N80C3 | 800 | 6,0 | 0,900 | 2,1 | 25 | 72 |
| SPP08P06P | 60 | 8,8 | 0,300 | 2,1 | 16 | 48 |
| SPP20N60S5 | 600 | 20 | 0,190 | 3,5 | 120 | 140 |
| SPP80P06P | 60 | 80 | 0,023 | 2,1 | 24 | 56 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
| ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". |
|
| Manufacturer |
| Fairchild / Infineon http://www.fairchildsemi.com http://www.infineon.com.com |
|
