NPN 1500/700V 5A 150W 550ns TO3
Varenummer:
77-634
Varekode: BU208A
Vægt: 17 g
166 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 14 stk. kan skaffes tirsdag d. 24/11
Produktoplysninger
- TRANSISTOR, NPN, TO-3
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 700V
- Transition Frequency ft: 7MHz
- Power Dissipation Pd: 150W
- DC Collector Current: 5A

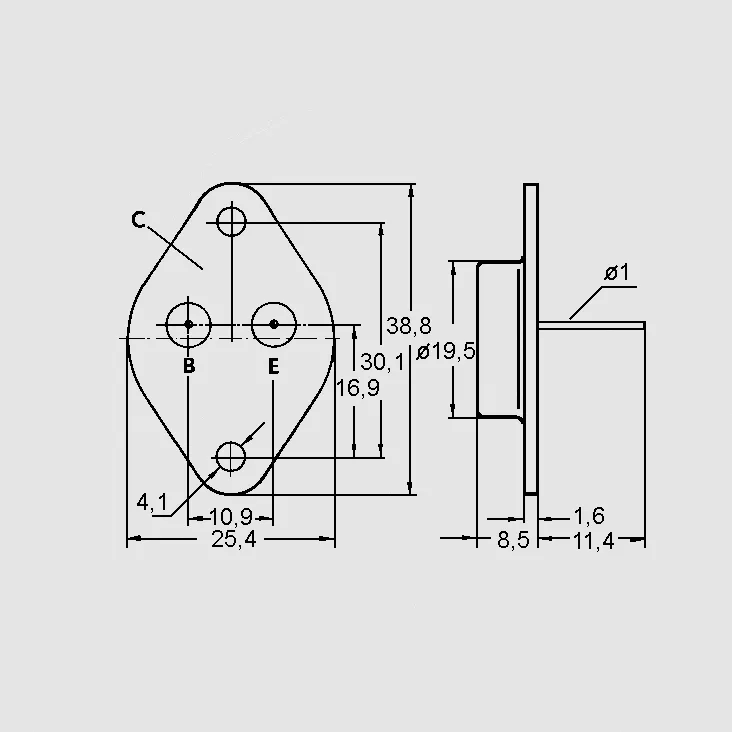

- Transistor Case Style: TO-3
- No. of Pins: 2
- SVHC: No SVHC (19-Dec-2012)
- Collector Emitter Voltage Vces: 1V
- Continuous Collector Current Ic Max: 5A
- Current Ic @ Vce Sat: 4.5A
- Current Ic Continuous a Max: 5A
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Typ: 7MHz
- Lead Spacing: 10.92mm
- No. of Transistors: 1
- Power Dissipation Ptot Max: 150W
- Termination Type: Through Hole
- Voltage Vces: 1.5kV
