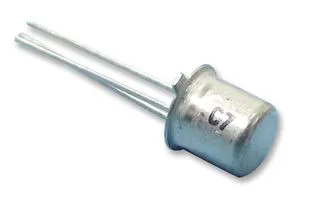

PNP 45V 0,1A 0,3W B:240-500 TO18
Varenummer:
77-416
Varekode: BC177B
523 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 4301 stk. kan skaffes torsdag d. 22/10
- TRANSISTOR, PNP, TO-18
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 45V
- Transition Frequency ft: 200MHz
- Power Dissipation Pd: 600mW
- DC Collector Current: 200mA
- DC Current Gain hFE: 180
- Transistor Case Style: TO-18
- No. of Pins: 3
- Operating Temperature Max: 200°C
- MSL: -
- SVHC: No SVHC (16-Dec-2013)
- Collector Emitter Voltage Vces: -200mV
- Continuous Collector Current Ic Max: 100mA
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 2mA
- Gain Bandwidth ft Min: 200MHz
- Gain Bandwidth ft Typ: 300MHz
- Hfe Min: 180
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +200°C
- Pin Configuration: a
- Power Dissipation Ptot Max: 600mW
- Voltage Vcbo: 50V
Inkl. moms
Kr. 6,25
- v/10 – Kr. 5,00
- v/25 – Kr. 4,15
- v/100 – Kr. 3,25
- v/500 – Kr. 2,75
Produktfiler
PNP 45V 0,1A 0,3W B:240-500 TO18
77-416
/ BC177B
523 stk.
på lager
Bestil nu for afsendelse i morgen
Ved bestilling nu, får vi dem hjem torsdag d. 22/10
- TRANSISTOR, PNP, TO-18
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 45V
- Transition Frequency ft: 200MHz
- Power Dissipation Pd: 600mW
- DC Collector Current: 200mA
- DC Current Gain hFE: 180
- Transistor Case Style: TO-18
- No. of Pins: 3
- Operating Temperature Max: 200°C
- MSL: -
- SVHC: No SVHC (16-Dec-2013)
- Collector Emitter Voltage Vces: -200mV
- Continuous Collector Current Ic Max: 100mA
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 2mA
- Gain Bandwidth ft Min: 200MHz
- Gain Bandwidth ft Typ: 300MHz
- Hfe Min: 180
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +200°C
- Pin Configuration: a
- Power Dissipation Ptot Max: 600mW
- Voltage Vcbo: 50V
