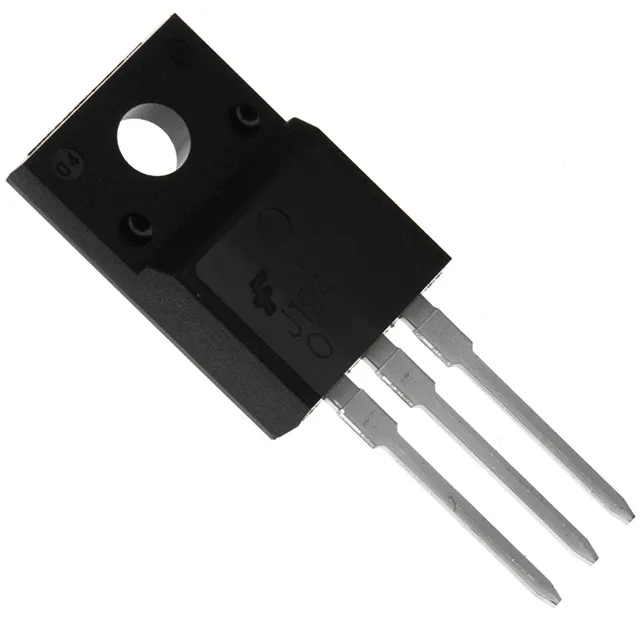

N-Ch 600V 3,8A 1,2R ISOWATT-220
Type Designator: STP6N60FI
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 40 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 600 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 3.8 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 4 V
Qg ⓘ - Total Gate Charge: 78 nC
tr ⓘ - Rise Time: 140 nS
Cossⓘ - Output Capacitance: 160 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 2.4 Ohm
Package: ISOWATT220
- v/10 – Kr. 12,50
- v/25 – Kr. 10,00
- v/100 – Kr. 7,50
- v/500 – Kr. 3,75
