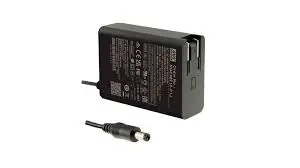

SPS Plug-in 15W 24V/0,625A (2,1x5,5mm)

Varenummer: 156-205
Varekode: NGE12I24-P1J
Vægt: 122 g
0 stk. på lager
Kontakt os for at få oplyst leveringstid
Vis lignende produkter i kategorien "20-24V"
GROUP:L4231
Package/Case
Wall Mount Power Supply
Output Power
15 W
Output voltage
24 V
Output current
0.625 A
Efficiency
88.5 %
Medical protection classification
2*MOPP
Connection type, output
5,5*2,1mm Barrel Plug
RoHS-Conform
 Manufacturer
  • MEAN WELL
Series
  • NGE12
Product group
  • L7257
Application
  • Household
  • ITE
  • Industry
  • Medical
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 48 mm
Dimension: Width
  • 28 mm
Dimension: Height
  • 55 mm
Weight
  • 112 g
Label
  • DEKRA; FCC
Manufacturer's warranty (years)
  • 3
Product description
  • NGE12 is a very reliable, 12W wall-mounted green adapter with an output that is compact and convenient to carry. This product is equipped with 5 types of interchangeable AC plugs (Europe, USA, UK, Australia and China), which makes it very suitable for traveling use. The NGE12 is a Class II (no FG) power supply that accepts an input range of 80VAC to 264VAC, which can meet the requirements of various electrical appliances. With an operating efficiency of up to 88.5% and an extremely low power consumption of less than 0.075W in idle mode, the NGE12 complies with the latest energy regulations of the USA (EISA 2007/DoE), Canada (NRCan), Australia and New Zealand (MEPS), the EU (ErP) and CoC version 5. The outstanding function enables the adapter to save energy when it is either in operating or standby mode. The entire series is approved for ITE, medical, household and industrial appliance safety regulations; in addition, the 94V-0 flame retardant plastic housing is used, which effectively protects users from electrical hazards.
Features
  • DC compatible
  • LPS

Operating conditions

MTBF
  • 1,272,800 h
Operating expectation
  • 30,000 h
Operating Temperature Min.
  • -30 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 85 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 80 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 113 V
Input voltage max. DC
  • 370 V
Input current
  • 0.25 A
Efficiency
  • 88.5 %
Efficiency (at 10% load)
  • 73.5 %
Average efficiency
  • 86 %
No load power, less than
  • 0.075 W
Leakage current, max.
  • 0.1 mA
Inrush current, max.
  • 80 A
Connection type, input
  • Plug Adapter

Output

Number of outputs
  • 1
Output Power
  • 15 W
Output voltage
  • 24 V
Output voltage tolerance
  • -3 %
Ripple & Noise
  • 240 mVp-p
Output current
  • 0.625 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Connection type, output
  • 5,5*2,1mm Barrel Plug
Cable length, output
  • 150 cm

Safety/Certifications

Protection class
  • II
Protection Class IP
  • IP21
Isolation voltage I/P-O/P
  • 4,000 V
Energy level
  • (EU) 2019/1782 + Level VI
Approvals
  • AS/NZ
  • BSMI
  • CCC
  • CE
  • CSA
  • EAC
  • IEC
  • PSE
  • RCM
  • UKCA
  • UL
Standards (EMC)
  • EN 55011 Class B
  • EN 55032 Class B
Standards (safety)
  • ANSI/AAMI ES 60601-1
  • EN 60335-1
  • EN 60601-1
  • EN 61558-1
  • EN 61558-2-16
  • EN 62368-1
  • IEC 60335-1
  • IEC 60601-1
  • IEC 61558-1
  • IEC 61558-2-16
  • IEC 62368-1
  • UL 62368-1
Medical protection classification
  • 2*MOPP




Inkl. moms
Kr. 149,00
  • v/10 – Kr. 129,00
  • v/50 – Kr. 109,00
  • v/100 – Kr. 99,00
