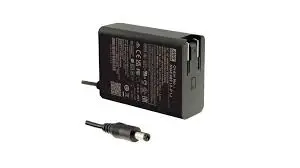

SPS Plug-in 12W 5V/2,4A (2,1/5,5 DC-stik)

Name: SPS Plug-in 12W 5V/2,4A (2,1/5,5 DC-stik)
SKU: 156201
Price: 149.00 DKK
Availability: OutOfStock

Varenummer: 156-201

Varekode: NGE12I05-P1J

Vægt: 128 g

0 stk. på lager

Kontakt os for at få oplyst leveringstid

Vis lignende produkter i kategorien "5V"

Package/CaseWall Mount Power Supply
Output Power12 W
Output voltage5 V
Output current2.400 A
Efficiency82 %
Medical protection classification2*MOPP
Connection type, output5,5*2,1mm Barrel Plug
RoHS-Conform

Manufacturer

MEAN WELL

Series

NGE12

Product group

L7257

Application

Household
ITE
Industry
Medical

Package/Case

Wall Mount Power Supply

Dimension: Length

48 mm

Dimension: Width

28 mm

Dimension: Height

55 mm

Weight

112 g

Label

DEKRA; FCC

Manufacturer's warranty (years)

Product description

NGE12 is a very reliable, 12W wall-mounted green adapter with an output that is compact and convenient to carry. This product is equipped with 5 types of interchangeable AC plugs (Europe, USA, UK, Australia and China), which makes it very suitable for traveling use. The NGE12 is a Class II (no FG) power supply that accepts an input range of 80VAC to 264VAC, which can meet the requirements of various electrical appliances. With an operating efficiency of up to 88.5% and an extremely low power consumption of less than 0.075W in idle mode, the NGE12 complies with the latest energy regulations of the USA (EISA 2007/DoE), Canada (NRCan), Australia and New Zealand (MEPS), the EU (ErP) and CoC version 5. The outstanding function enables the adapter to save energy when it is either in operating or standby mode. The entire series is approved for ITE, medical, household and industrial appliance safety regulations; in addition, the 94V-0 flame retardant plastic housing is used, which effectively protects users from electrical hazards.

Features

DC compatible
LPS

Notice

AC interchangeable plugs must be ordered separately.

Operating conditions

MTBF

1,272,800 h

Operating expectation

30,000 h

Operating Temperature Min.

-30 °C

Operating Temperature Max.

70 °C

Storage Temperature Min.

-20 °C

Storage Temperature Max.

85 °C

Input

Mains frequency min.

47 Hz

Mains frequency max.

63 Hz

Input voltage min. AC

80 V

Input voltage max. AC

264 V

Input voltage min. DC

113 V

Input voltage max. DC

370 V

Input current

0.25 A

Efficiency

82 %

Efficiency (at 10% load)

64.5 %

Average efficiency

82 %

No load power, less than

0.075 W

Leakage current, max.

0.1 mA

Inrush current, max.

80 A

Power factor correction (PFC)

Connection type, input

Plug Adapter

Output

Number of outputs

Output Power

12 W

Output voltage

Selectable output voltage

Output voltage tolerance

-5 %

Ripple & Noise

60 mVp-p

Output current

2.400 A

Overload protection

Type of overload protection

Hiccup

Short-circuit protection

Overvoltage protection

Overtemperature protection

Connection type, output

5,5*2,1mm Barrel Plug

Cable length, output

150 cm

Safety/Certifications

Protection class

Protection Class IP

IP21

Isolation voltage I/P-O/P

4,000 V

Energy level

(EU) 2019/1782 + Level VI

Approvals

AS/NZ
BSMI
CCC
CE
CSA
EAC
IEC
PSE
RCM
UKCA
UL

Standards (EMC)

EN 55011 Class B
EN 55032 Class B

Standards (safety)

ANSI/AAMI ES 60601-1
EN 60335-1
EN 60601-1
EN 61558-1
EN 61558-2-16
EN 62368-1
IEC 60335-1
IEC 60601-1
IEC 61558-1
IEC 61558-2-16
IEC 62368-1
UL 62368-1

Medical protection classification

2*MOPP

Inkl. moms

Kr. 149,00

v/10 – Kr. 129,00
v/50 – Kr. 109,00
v/100 – Kr. 99,00
