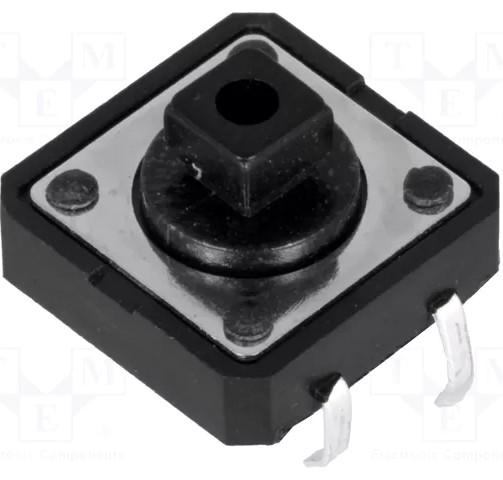

Tact Switch PC Horizontal 7,3mm 2,55N
Varenummer:
156-171
Varekode: TACTS-24R-F
677 stk.
på lager
Manufacturer | NINIGI |
Type of switch | microswitch TACT |
| Contacts configuration
| SPST-NO |
Number of positions | 2 |
Stable positions number | 1 |
| DC contacts rating @R(at resistive load)
| 50mA / 12V DC |
Mounting | THT |
Illumination | none |
Operating Force | 2.55N |
Body dimensions | 12x12mm |
| Button height(measured from PCB)
| 7.3mm |
| Switching method(the position in bracket indicates momentary position.)
| OFF-(ON) |
Terminal pitch | 5x12.5mm |
Operating temperature | -25...70°C |
Button shape | square |
Actuator colour | black |
Button size | 3.8x3.8mm |
Leads | for PCB, straight |
Max. contact resistance: | 50mΩ |
Min. insulation resistance | 0.1GΩ |
Soldering temperature | 250°C |
Inkl. moms
Kr. 4,23
- v/10 – Kr. 3,36
- v/25 – Kr. 2,64
- v/100 – Kr. 1,43
- v/1000 – Kr. 1,13
