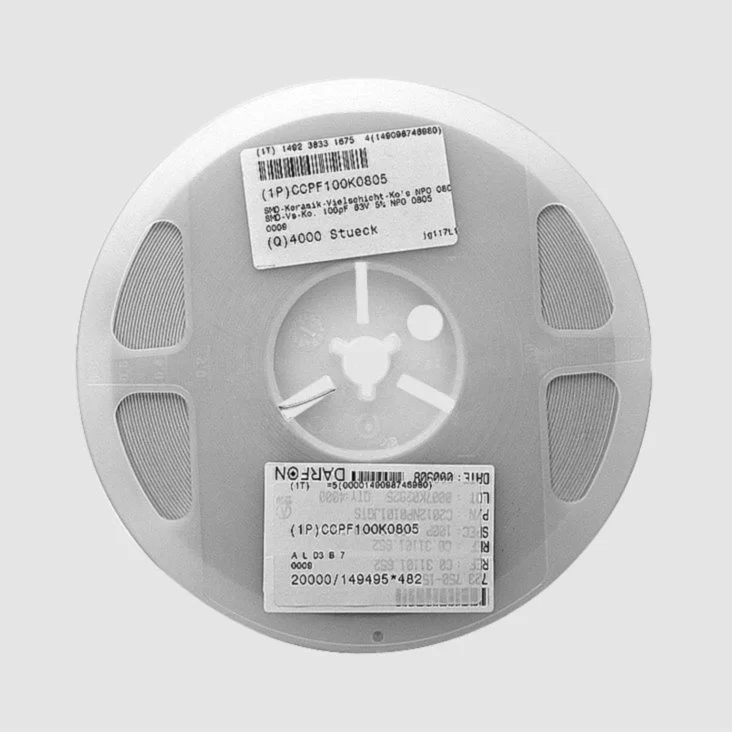

SMD MLC Capacitor 82pF 50V 5% NPO 0805

Name: SMD MLC Capacitor 82pF 50V 5% NPO 0805
SKU: 156116
Price: 0.89 DKK
Availability: InStock

Varenummer: 156-116

Varekode: C2012NPO820JGT

3130 stk. på lager

Vis lignende produkter i kategorien "SMD 0805"

GROUP:C5414

Gruppe: C5414
DARFON SMD Multilayer Ceramic Capacitors
Series: C2012
Type of Ceramic: NP0
Housing: 0805

Type

Ceramic multilayer capacitor

Dielectric

COG (NPO)

Capacity

82 pF

Capacity
Tolerance

±5%

Rated voltage
DC

50 V

Assembly
Type

SMD

Housing

0805

RoHS-Conform

Manufacturer

Darfon

Type

Ceramic multilayer capacitor

Series

C2012

Product group

C5414

Housing

0805

Applications

Suitable for: LC and RC resonant circuits, filtering, time control.

Dielectric

COG (NPO)

Application

Low ESR

Assembly Type

Form of Delivery

strapped

Features

• Class I: Temperature-compensated type
• Ultra-stable
• Low ESR (frequency within 800 MHz)
• Good frequency performance
• No capacitance aging
• Halogen-free

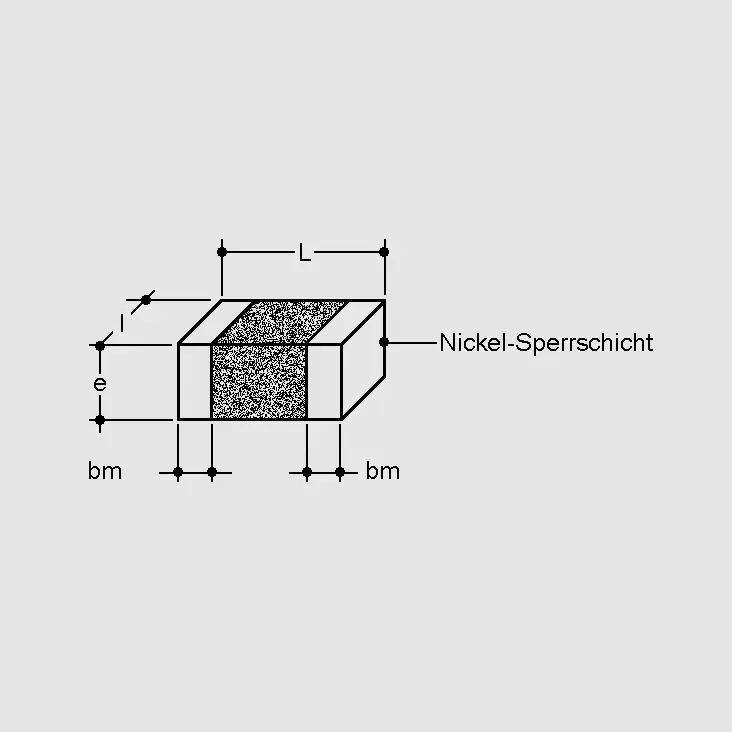

Dimensions and Weights

Dimension: Length

2 mm

Dimension: Width

1.25 mm

Dimension: Height

1.45 mm

Operating conditions

Operating Temperature Min.

-55 °C

Operating Temperature Max.

125 °C

Technical Features

Capacity

82 pF

Capacity

Capacity unit

Capacity Tolerance

±5%

Rated voltage DC

50 V

Class

Class I

Insulation resistance

100 GOhm

Inkl. moms

v/10 Kr. 0,89

v/100 – Kr. 0,75
v/1000 – Kr. 0,38
v/4000 – Kr. 0,12
