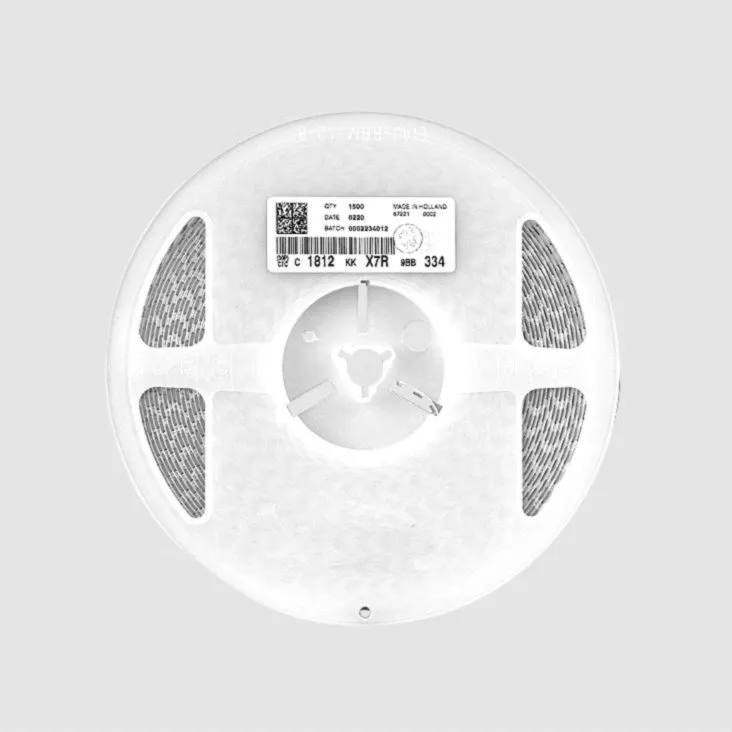

SMD MLC Capacitor 470nF 63V 10% X7R 1812

Varenummer: 155-998
Varekode: 2222 594 16649
2800 stk. på lager
Vis lignende produkter i kategorien "SMD 1812"
Specifikationer
Materiale X7R
Produkt kondensator
Kondensator-type keramisk
Spænding, max. 63  V
Komponenthus 1812
Tolerance ±10  %
Kapacitans 470  nF
Type
Ceramic multilayer capacitor
Dielectric
X7R
Capacity
470 nF
Capacity Tolerance
±10%
Rated voltage DC
63 V
Assembly Type
SMD
Housing
1812
RoHS-Conform

General

Manufacturer
  • Kemet
Type
  • Ceramic multilayer capacitor
Series
  • C1812C
Product group
  • C5439
Housing
  • 1812
Applications
  • Typical applications include decoupling, bypass, filtering and surge suppression.
Dielectric
  • X7R
Assembly Type
  • SMD
Form of Delivery
  • strapped
Labelling
  • Kemet ID, 2-digit capacity code
Features

  • • Operating temperature range from −55°C to +125°C
    • Temperature-stable dielectric
    • Non-polar, minimizes installation problems
    • 100% pure matte tin-plated terminals for excellent solderability
    • Lead-free (Pb), RoHS and REACH compliant

Alternative Part Number
  • C1812C474K5RACTU

Dimensions and Weights

Dimension: Length
  • 4.5 mm
Dimension: Width
  • 3.2 mm
Dimension: Height
  • 1.6 mm

Operating conditions

Operating Temperature Min.
  • -55 °C
Operating Temperature Max.
  • 125 °C

Technical Features

Capacity
  • 470 nF
Capacity
  • 470
Capacity unit
  • nF
Capacity Tolerance
  • ±10%
Rated voltage DC
  • 50 V
Class
  • Class II
Inkl. moms
v/10 Kr. 3,33
  • v/100 – Kr. 1,49
  • v/1000 – Kr. 0,99
