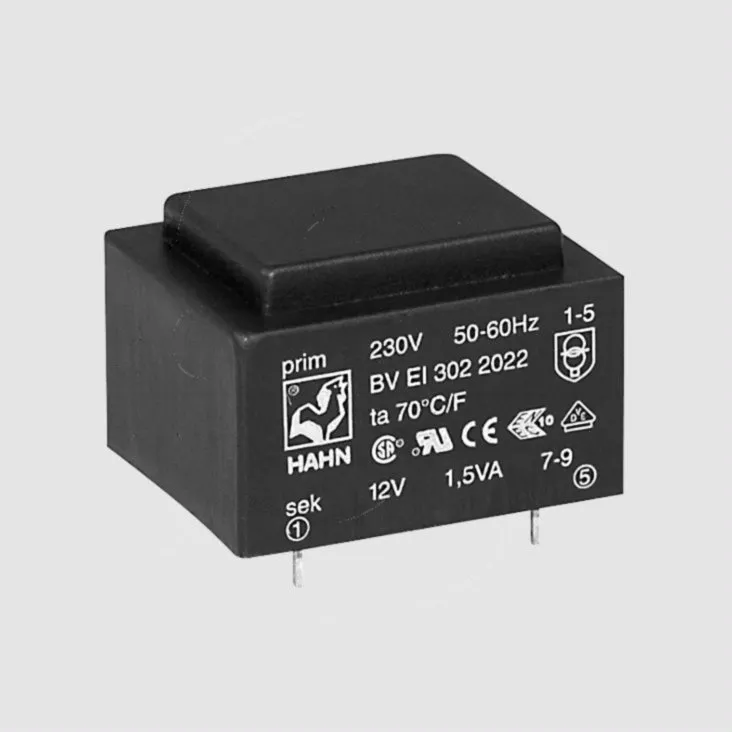

Transformer 1,5VA 220V 2x6V 2x125mA
Varenummer:
155-325
Varekode: 3112-2
9 stk.
på lager
GERTH Transformers
Core: EI30
Short-Circuit Proof
Output: 1,5VA
Input Voltage: 220V
| Features |
| Winding of double coated copper wire for better insulation,
vacuum casted, two chambers Connections for PCB use |
 |
| Technical
Specifications |
|
|
| Temperature Resistance Class1): | Ta 70/F |
| End Temperature in Case of Short Circuit, Max2): | 190°C |
| End Temperature in Standard Use: | 140°C |
| Permissible Overtemperature3): | 70K |
| Primary Voltage (50/60Hz): | 220V AC |
| Power, Max. (Ta 70/F)2): | 1,5VA |
| Test Voltage: | 4kV/50Hz |
| No-Load Voltage (According to VDE 0570): | 2 x UN sec |
| 1)The Maximum Permissible Continuous Ambient Temperature Applies in the Event of Short-Circuit,2)Taking into Account the Indicated Temperature Resistance Class,3)At 70°C Ambient Temperature | |
|
|
| Approvals |
 0570,   10 |
|
Inkl. moms
Kr. 37,50
