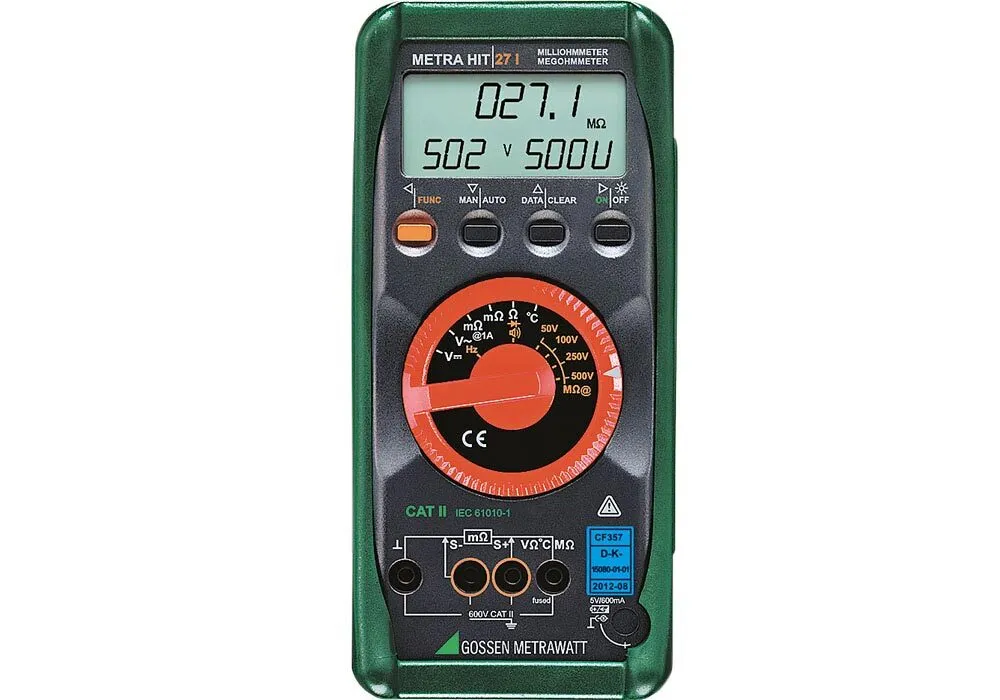

Milliohmmeter Megohmmeter incl. 27I
- Gossen Metrawatt handheld multimeter and tester METRAHIT 27I in a set for avionic applications.
- Insulation tester, milliohmmeter, multimeter and datalogger in one.
- DATA hold memory for up to 1200 measured values.
Gossen Metrawatt METRAHIT 27AS Insulation Tester, Milliohmmeter, Multimeter and Datalogger for Avionic
The METRAHIT 27AS (M227C) is a milliohmmeter and a multimeter, combined with an insulation tester for measurements up through the gigaohm range. It is very well suited for on-site service, as well as for a wide variety of laboratory tasks, such as measuring low value contact resistances at welding seams and riveted joints or determination of low-resistance transitions at outer skins of aercraft (lightning protection, wicktest). The set is customized for avionic applications.
- Insulation resistance measurement 30.00 MΩ to 3.000 GΩ with adjustable test voltage of 50 V, 100 V, 250 V or 500 V.
- Milliohmmeter 3.000...300.00 mΩ with 1 A measuring current and 30.00 mΩ...30.00 Ω with 200 mA measuring current.
- Kelvin connection (4-wire measurement).
- Resistance measurement from 300 Ω to 30 MΩ.
- Voltage measurement from 3...600 VDC and 3...600 VAC with ±30,000 digits.
- Frequency measurement from 300 Hz to 3 kHz.
- DATA hold memory for up to 1200 measured values.
- Continuity and diode testing.
- Overload protection.
- DAkkS calibration certificate as standard feature.
- LCD including background illumination.
Model Overview
| Model | METRAHIT 27AS |
| Article no. | M227C |
| Included: | |
| Multimeter | METRAHIT 27I |
| GH18 protective rubber cover with carrying strap | ✓ |
| 3x size AA rechargeable NiMH batteries | ✓ |
| NA Hit 27 power adapter | ✓ |
| KS17S measurement cable set | ✓ |
| KC4 Kelvin-Clip | ✓ |
| KC27 Kelvin probe | ✓ |
| USB-HIT, USB cable, METRAwin10 software | ✓ |
| HC30 hard case | ✓ |
| Operating manual | ✓ |
| Short-form operating manual | ✓ |
| DAkkS calibration certificate | ✓ |
