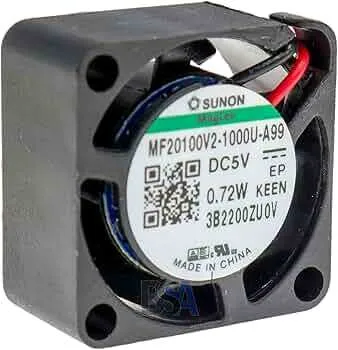

Fan 5V 20x10 2,5m³/h 20dBA
Varenummer:
155-047
Varekode: MF20100V2-1000U-A99
Vægt: 9 g
7 stk.
på lager
|
Manufacturer
|
SUNON | |
|
Type of fan
|
DC | |
|
Kind of fan
|
axial | |
|
Operating voltage
|
3.2...6V DC | |
|
Fan dimensions
|
20x20x10mm | |
|
Power consumption
|
0.45W | |
|
Current rating
|
80mA | |
|
Fan efficiency
|
2.54m3/h | |
|
Noise level
|
20dBA | |
|
Kind of Bearing
|
Vapo | |
|
Rotational rate/speed
|
14000rpm | |
|
Min. insulation resistance
|
10MΩ | |
|
Impeller material
|
thermoplastic | |
|
Enclosure material
|
thermoplastic | |
|
Insulation class
|
A | |
|
Leads
|
lead x2 | |
|
Operating temperature
|
-10...70°C | |
|
Cable length
|
0.15m | |
|
Flammability rating
ECE R-118:
This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc. UL94: This standard is used to assess the flammability of plastic materials used in various industries, including the electronics, automotive and construction sectors. |
UL94V-0 | |
|
Additional functions
|
autorestart | |
|
Fan motor
|
brushless DC | |
|
Static pressure
|
5.08mm H2O | |
|
Wire size
|
28AWG |
Inkl. moms
Kr. 99,00
- v/10 – Kr. 89,00
- v/100 – Kr. 75,00
