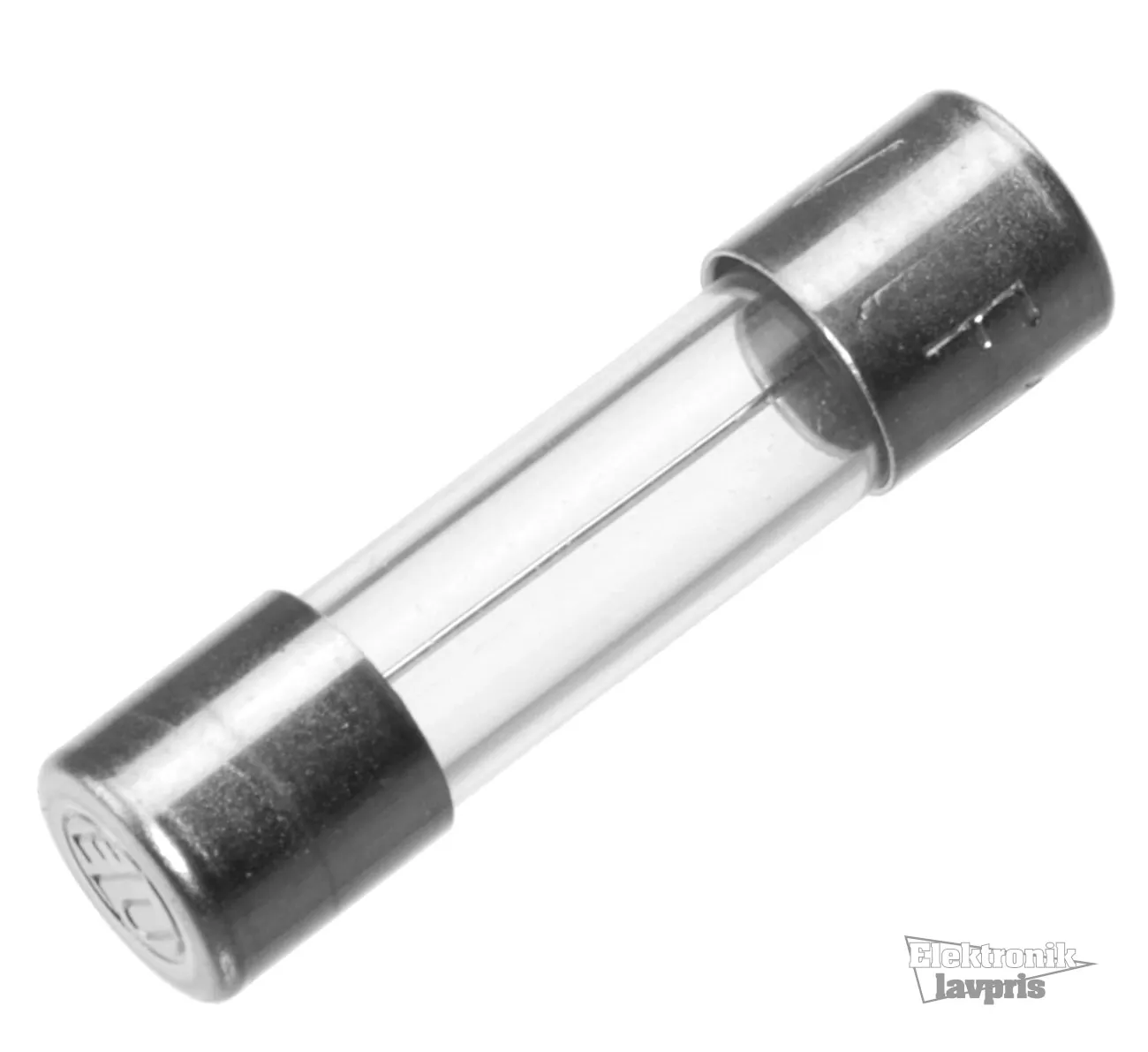

Sikring Træg (T) 12,5A (12500mA) 5 x 20

Varenummer: 153-533
Varekode: 522028
Vægt: 1 g
491 stk. på lager
Bestil nu for afsendelse mandag d. 28/9
Vis lignende produkter i kategorien "T = Træg"
GROUP:E1442

Gruppe: E1442
ESKA Fuse Links
Series: 522500, 522000
Characteristic: Time-Lag
Rated Voltage: 250V
Housing: 5x20mm

Features

ESKA5225_: glas tube, transparent
ESKA5220_: glas tube, with extinguishing agent
Contact caps: brass, nickel plated
Technical Specifications
Rated Voltage: 250V
Pre-arcing Time Limits 32mA...100mA
2,1xIN, Max.: 2Min.
2,75xIN: 200ms...10s
4xIN: 40ms...3s
10xIN: 10ms...300ms
Pre-arcing Time Limits 125mA...6,3A
2,1xIN, Max.: 2min.
2,75xIN: 600ms...10s
4xIN: 150ms...3s
10xIN: 20ms...300ms
Pre-arcing Time Limits 8A...10A
1,5xIN, Min.: 1h
2,1xIN, Max.: 30min.
4xIN, Max.: 300ms
10xIN, Max.: 20ms
Part Nr. Rated RBC Voltage Melting
Current Drop Integral
[A] [A AC] [mV] [A2s]
ESKA522502 0,032 35 5000 0,0293
ESKA522503 0,04 35 4000 0,0351
ESKA522504 0,05 35 3500 0,0760
ESKA522505 0,063 35 3000 0,0190
ESKA522509 0,16 35 1900 0,0978
ESKA522510 0,2 35 1500 0,10
ESKA522511 0,25 35 1300 0,35
ESKA522512 0,315 35 1100 0,33
ESKA522513 0,4 35 1000 0,49
ESKA522514 0,5 35 900 0,96
ESKA522515 0,63 35 300 1,58
ESKA522516 0,8 35 250 3,29
ESKA522517 1,0 35 150 6,26
ESKA522518 1,25 35 150 11,84
ESKA522558 1,4 on Request
ESKA522519 1,6 35 150 21,50
ESKA522520 2,0 35 150 32,32
ESKA522521 2,5 35 120 60,38
ESKA522522 3,15 35 100 88,91
ESKA522523 4,0 40 100 158,08
ESKA522524 5,0 50 100 89,00
ESKA522525 6,3 63 100 130,18
ESKA522026 8,0 300 160 124,80
ESKA522027 10,0 300 150 220,00
ESKA522028 12,5 300 150 434,38
RBC = Rated Breaking Capacity
Norms
ESKA5225_: DIN41662, EN60127-2-3
ESKA5220_: DIN41571-3
Approvals
only ESKA5225_:
Inkl. moms
Kr. 6,41
  • v/10 – Kr. 2,67
  • v/30 – Kr. 1,96
  • v/100 – Kr. 1,14
