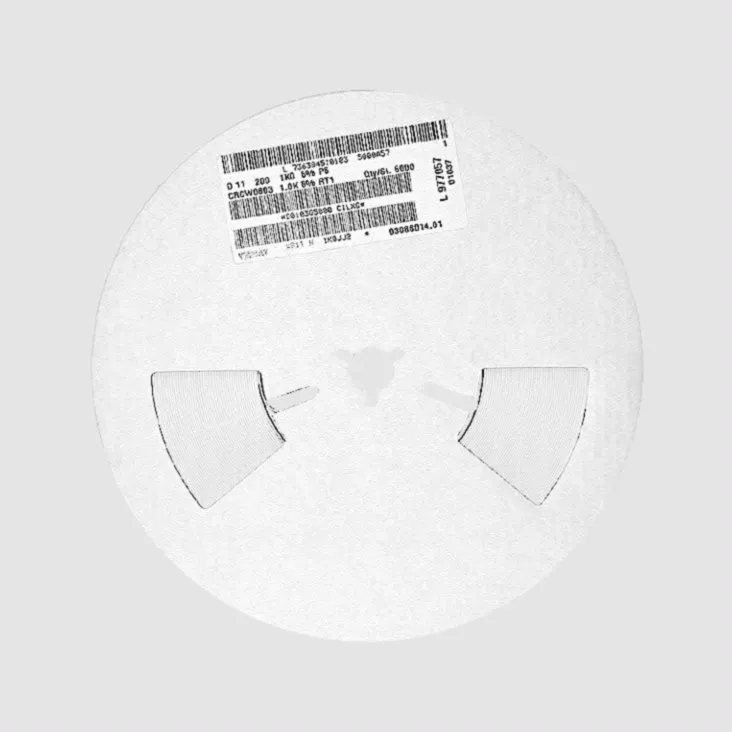

SMD Resistor 0805 1% 1,62K Taped
Varenummer:
153-461
Varekode: RL0805K001,62-1
4400 stk.
på lager
Specifikationer
| Modstand | 1.62 kΩ |
|---|---|
| Tolerance | ±1 % |
| Komponenthus | 0805 |
| Effekt, max. | 0.125 W |
| Features |
| • Metal glaze on high quality ceramic • Protective overglaze • Excellent stability in different environmental conditions • Suitable for commercial applications |
 |
| Technical Specifications |
|
|
| Resistance Value: | Row E24 |
| Tolerance: | ±1% |
| Power Rating (70°C): | 0,125W |
| Operating Voltage, Max.: | 150Vrms |
| Insulation Resistance: | >109W |
| Thermal Resistance: | �440K/W |
| Temperature Coefficient: | ±100x10-6/K |
| Temperature Range: | - 55°C...+125°C |
| Climatic Category: | 55/125/56 |
| Failure Rate: | 3x10-9/h |
| Derating: | Linear from 70°C to 125°C (0W) |
|
|
Produktfiler
