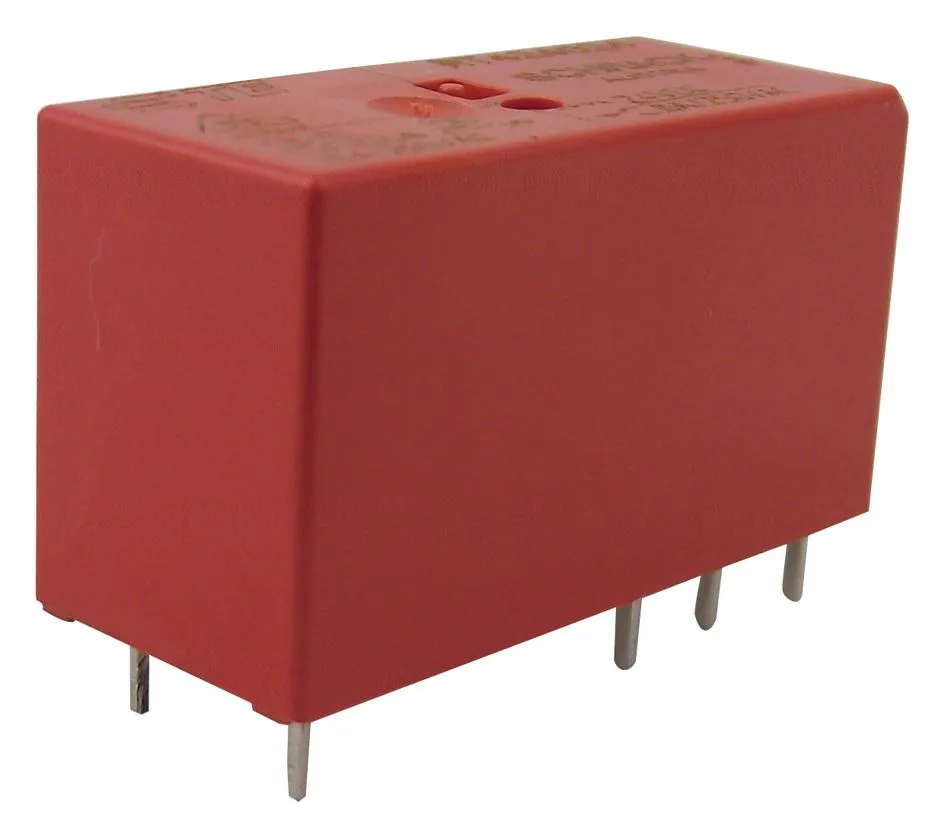

2xSkifte PrintRelæ 48VDC 8A 5520R
Varenummer:
153-289
Varekode: RT424048
Vægt: 14 g
31 stk.
på lager
|
Manufacturer
|
TE Connectivity | |
|
Type of relay
|
electromagnetic | |
|
Contacts configuration
|
DPDT | |
|
Rated coil voltage
|
48V DC | |
|
Contact current max.
|
8A | |
|
AC contacts rating @R(at resistive load)
|
8A / 250V AC | |
|
DC contacts rating @R(at resistive load)
|
8A / 30V DC | |
|
Switched voltage
|
max. 300V DC, max. 400V AC | |
|
Relay variant
|
miniature, monostable | |
|
Mounting
|
PCB | |
|
Coil resistance
|
5.52kΩ | |
|
Coil voltage min.
|
33.6V DC | |
|
Operate time
|
8ms | |
|
Body dimensions
|
29x12.7x15.7mm | |
|
Release time
|
6ms | |
|
Coil power consumption
|
400mW | |
|
IP rating
|
IP40 | |
|
Operating temperature
|
-40...85°C | |
|
Relay series
|
RT2 | |
|
Contact material
|
AgNi 90/10 | |
|
Terminal pitch
|
5mm | |
|
Related items
|
RT17017, RT17040, RT78726 | |
|
Height
|
15.7mm | |
|
Number of pins
|
8 |
