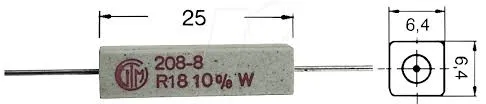

Resistor 5W 5% 0,056R
Varenummer:
153-239
Varekode: RCIE000,056
46 stk.
på lager
Bestil nu for afsendelse i morgen
Specifikationer
| Tolerance | ±5 % |
|---|---|
| Effekt, max. | 5 W |

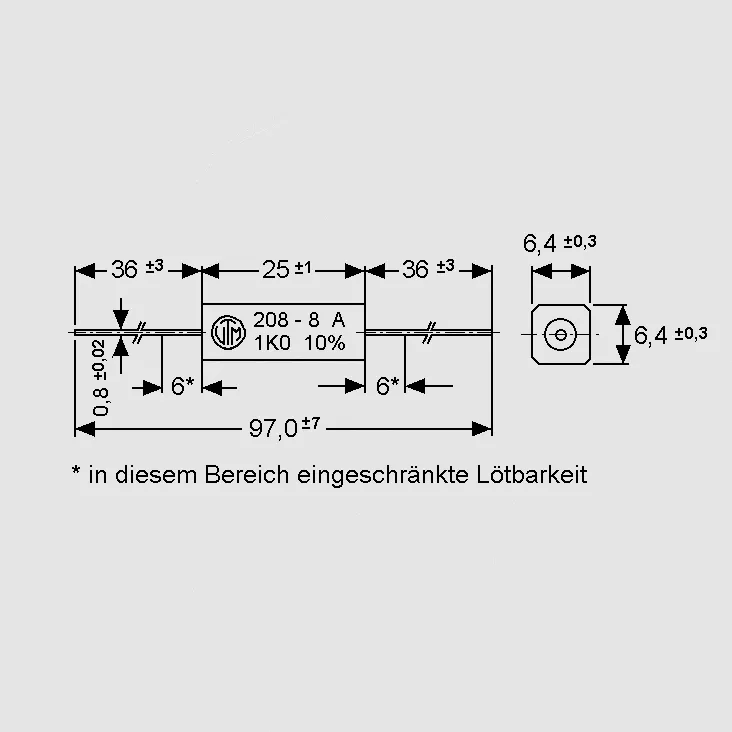

| Komponenthus | 208-8 |
| Modstand | 0.056 Ω |
Features
| Wound on a glass fiber core with special direct terminals,
temperature resistant Wound resistor embedded in a cement sealed ceramic tube |
 |
|
Technical Specifications |
|
|
| Resistance Tolerance: | ±5% |
| Power Rating (70°C): | 5W |
| Operating Voltage, Max.: | (PxR)1/2 |
| Thermal Resistance: | 50K/W |
| Insulation Resistance, Min.: | 104 MOhm |
| Insulation Voltage (1Min.): | 2000Vrms |
| Temperature Coefficient | |
| 0R075...0R3: | +400 ±50ppm/K |
| 0R33...470R: | 0 ±40ppm/K |
| 510R...15K: | 0 ±10ppm/K |
| Temperature Range: | -55...+350°C |
| Climatic Category: | 55/200/21 |
| Failure Rate (Value Dependent): | Approx. 100x10-9/h |
| Terminal Tensile Strength: | 50N |
| Solderability:1) | 2,5s |
| Derating: | Linear 70°C to 350°C (0W) |
| 1) Solderglobule Test, IEC 60068-2-20-T | |
|
|
| Norms |
| Applicable: CECC40202-001, -005 |
Produktfiler
Resistor 5W 5% 0,056R
153-239
/ RCIE000,056
46 stk.
på lager
Bestil nu for afsendelse i morgen
Kontakt os for at få oplyst leveringstid
Specifikationer
- Tolerance ±5 %
- Effekt, max. 5 W
- Komponenthus 208-8
- Modstand 0.056 Ω
Features
| Wound on a glass fiber core with special direct terminals,
temperature resistant Wound resistor embedded in a cement sealed ceramic tube |
|
|
Technical Specifications |
|
|
| Resistance Tolerance: | ±5% |
| Power Rating (70°C): | 5W |
| Operating Voltage, Max.: | (PxR)1/2 |
| Thermal Resistance: | 50K/W |
| Insulation Resistance, Min.: | 104 MOhm |
| Insulation Voltage (1Min.): | 2000Vrms |
| Temperature Coefficient | |
| 0R075...0R3: | +400 ±50ppm/K |
| 0R33...470R: | 0 ±40ppm/K |
| 510R...15K: | 0 ±10ppm/K |
| Temperature Range: | -55...+350°C |
| Climatic Category: | 55/200/21 |
| Failure Rate (Value Dependent): | Approx. 100x10-9/h |
| Terminal Tensile Strength: | 50N |
| Solderability:1) | 2,5s |
| Derating: | Linear 70°C to 350°C (0W) |
| 1) Solderglobule Test, IEC 60068-2-20-T | |
|
|
| Norms |
| Applicable: CECC40202-001, -005 |
