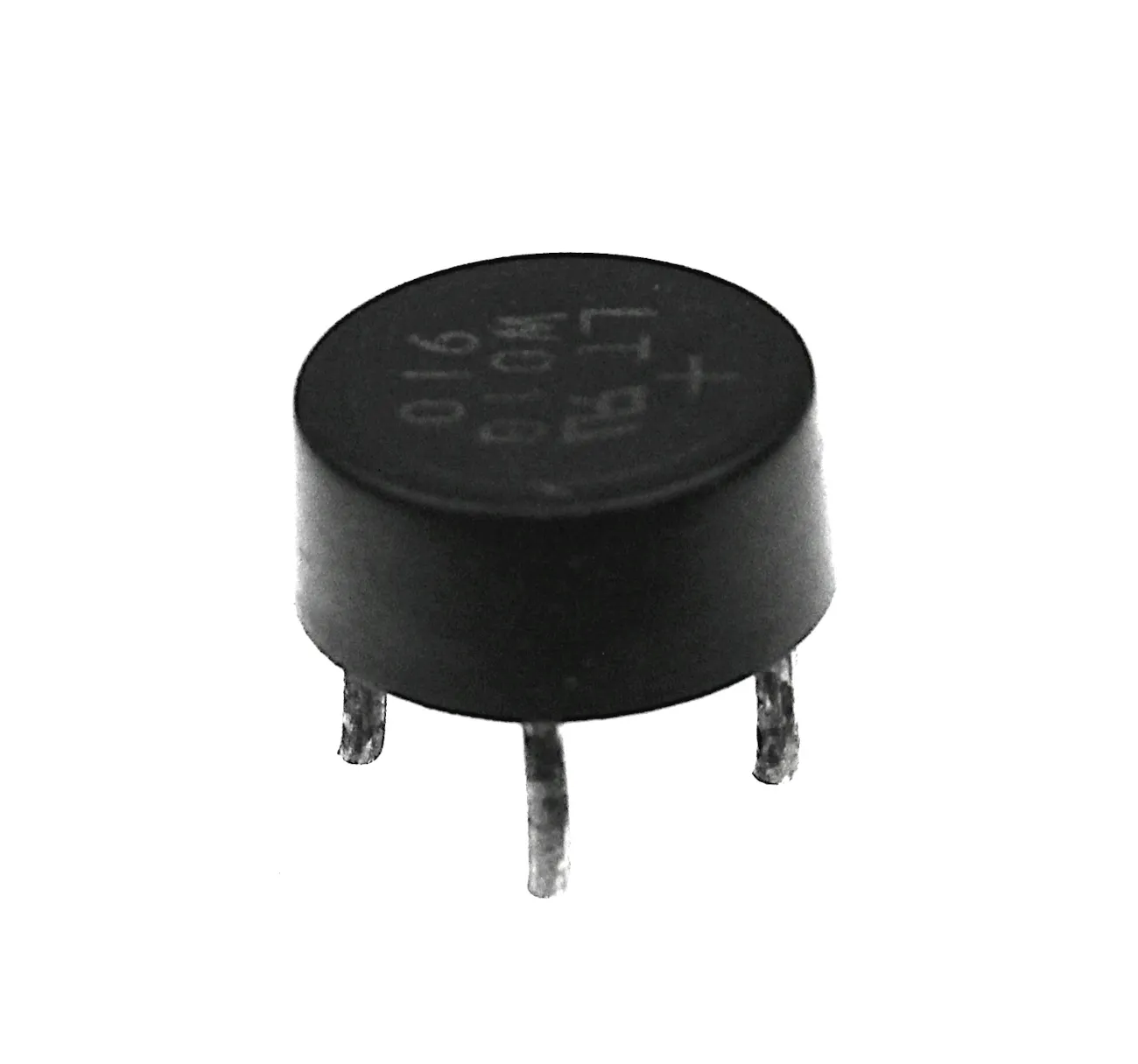

Rund brokobling, 1,5A, 70V(RMS)
Varenummer:
153-205
Varekode: W01M
Vægt: 1 g
761 stk.
på lager
NB: Længde på ben: 5mm.
| Technical Specifications |
| • Operating temperature range -55...+125°C |
 |
| Part Nr. | URRM | URMS | UF | IF(AV) | IR |
| [V] | [V] | [V] | [A] | [µA] | |
| W01M | 100 | 70 | 1,0 | 1,5 | 10 |
| W02M | 200 | 140 | 1,0 | 1,5 | 10 |
| W06M | 600 | 420 | 1,0 | 1,5 | 10 |
| W10M | 1000 | 700 | 1,0 | 1,5 | 10 |
| URRM = Max. Peak Recurrent Reverse Voltage, URMS = Max. RMS Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Rectified Current, IR = Max. Reverse Current | |||||
Inkl. moms
Kr. 4,95
- v/10 – Kr. 3,46
- v/25 – Kr. 1,98
- v/100 – Kr. 1,58
Rund brokobling, 1,5A, 70V(RMS)
153-205
/ W01M
761 stk.
på lager
NB: Længde på ben: 5mm.
| Technical Specifications |
| • Operating temperature range -55...+125°C |
|
| Part Nr. | URRM | URMS | UF | IF(AV) | IR |
| [V] | [V] | [V] | [A] | [µA] | |
| W01M | 100 | 70 | 1,0 | 1,5 | 10 |
| W02M | 200 | 140 | 1,0 | 1,5 | 10 |
| W06M | 600 | 420 | 1,0 | 1,5 | 10 |
| W10M | 1000 | 700 | 1,0 | 1,5 | 10 |
| URRM = Max. Peak Recurrent Reverse Voltage, URMS = Max. RMS Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Rectified Current, IR = Max. Reverse Current | |||||
