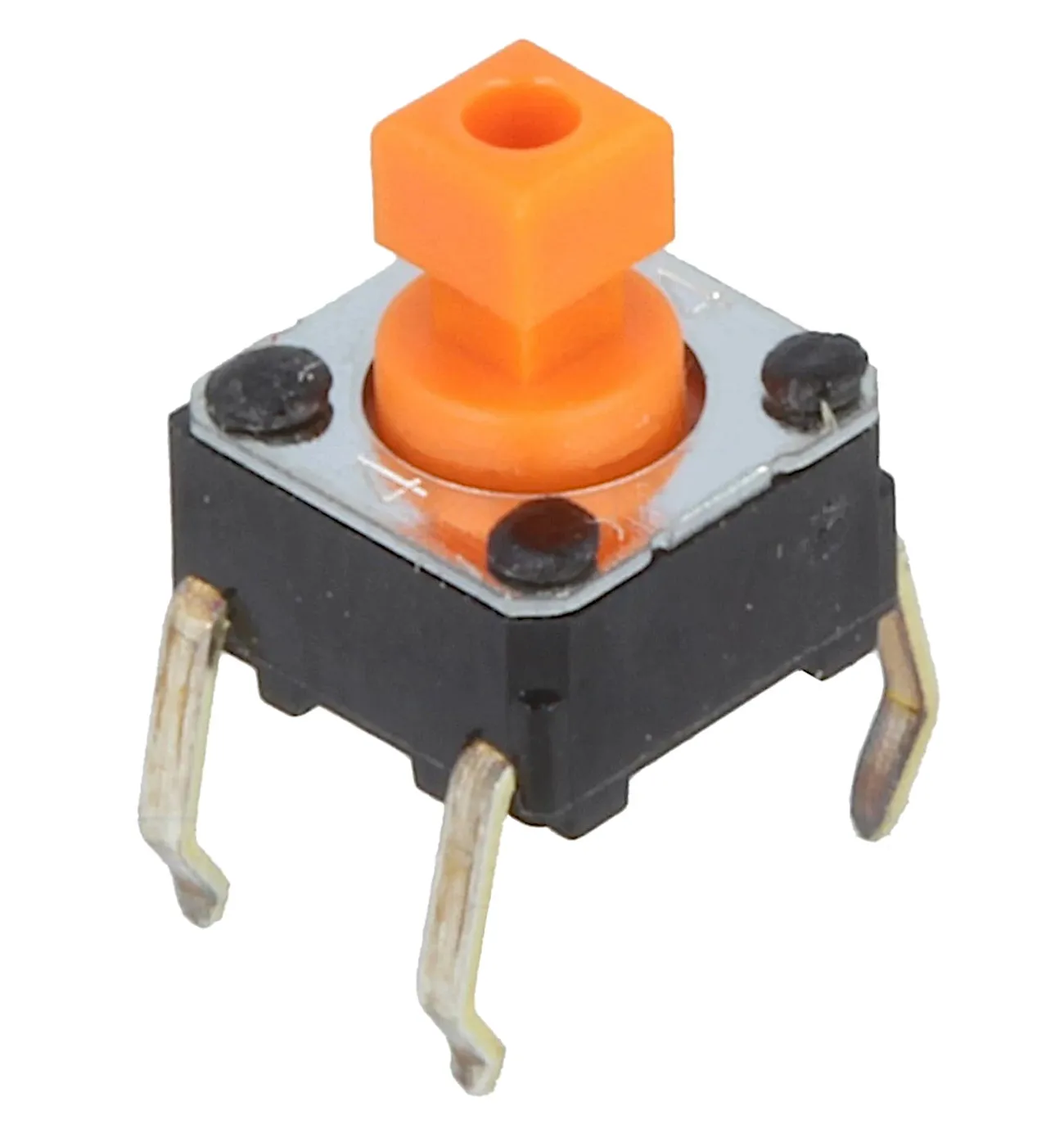

Mini-Taster print lgd.7,3mm 2,55N
Type of switch: microswitch TACT
Contacts configuration: SPST-NO
Number of positions: 2
DC contacts rating @R (at resistive load): 50mA / 24V DC
Mounting: THT
Illumination: none
Operating Force: 2.55N
Body dimensions: 6x6mm
Button height (measured from PCB): 7.3mm
Switching method (the position in bracket indicates momentary position.): OFF-(ON)
Terminal pitch: 4.5x6.5mm
Operating temperature: -25...70°C
Button shape: square
orange
Key stroke:0.25mm
Leads for PCB, straight
Contact material: phosphor bronze
Max. contact resistance: 100mΩ
Min. insulation resistance 0.1GΩ
Contact plating: silver plated
Mechanical durability: 100000 cycles
Related items: B32-1000, B32-1010, B32-1030, B32-1060, B32-1080
Manufacturer series B3F
Stable positions number: 1
- v/10 – Kr. 5,50
- v/25 – Kr. 4,25
- v/100 – Kr. 3,00
