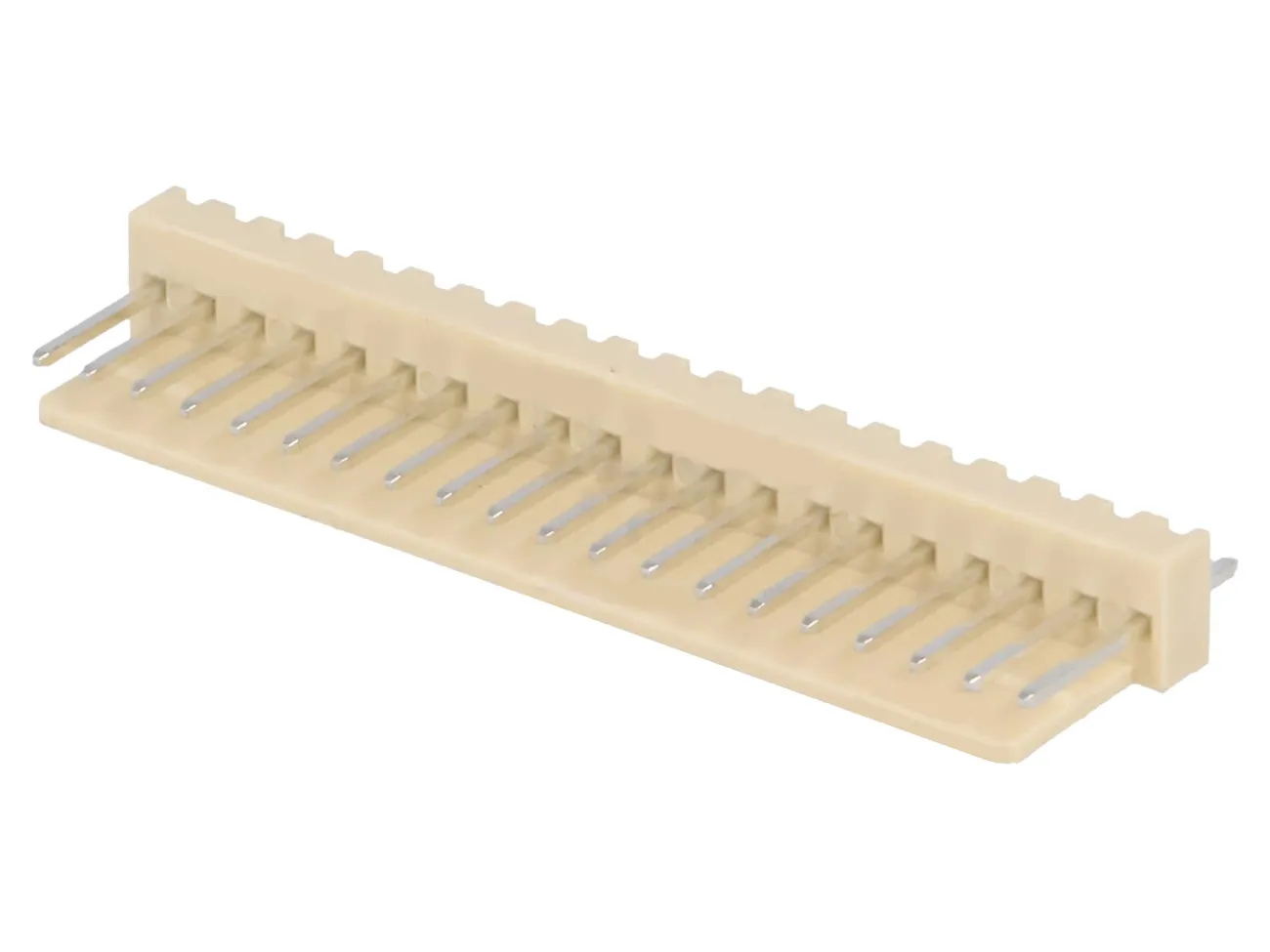

PCB Header 20-Pole Straight P2,54
Varenummer:
152-498
Varekode: NSL254M-20G
Vægt: 2 g
81 stk.
på lager
Wire-board, male, NS25
Contacts pitch: 2.54mm
Number of pins: 20
Electrical mounting: THT
Rated voltage: 250V
Current rating: 3A
Contact plating: tinned
Flammability rating: UL94V-0
Operating temperature: -25...85°C
Max. contact resistance: 10mΩ
Spatial orientation: straight
polyamide
A dimension: 50.8mm
B dimension: 48.26mm
Leads dimensions: 0.64x0.64x3.3mm
Inkl. moms
Kr. 17,00
- v/10 – Kr. 11,00
- v/25 – Kr. 10,00
- v/100 – Kr. 8,00
- v/1000 – Kr. 4,00
PCB Header 20-Pole Straight P2,54
152-498
/ NSL254M-20G
81 stk.
på lager
Wire-board, male, NS25
Contacts pitch: 2.54mm
Number of pins: 20
Electrical mounting: THT
Rated voltage: 250V
Current rating: 3A
Contact plating: tinned
Flammability rating: UL94V-0
Operating temperature: -25...85°C
Max. contact resistance: 10mΩ
Spatial orientation: straight
polyamide
A dimension: 50.8mm
B dimension: 48.26mm
Leads dimensions: 0.64x0.64x3.3mm
