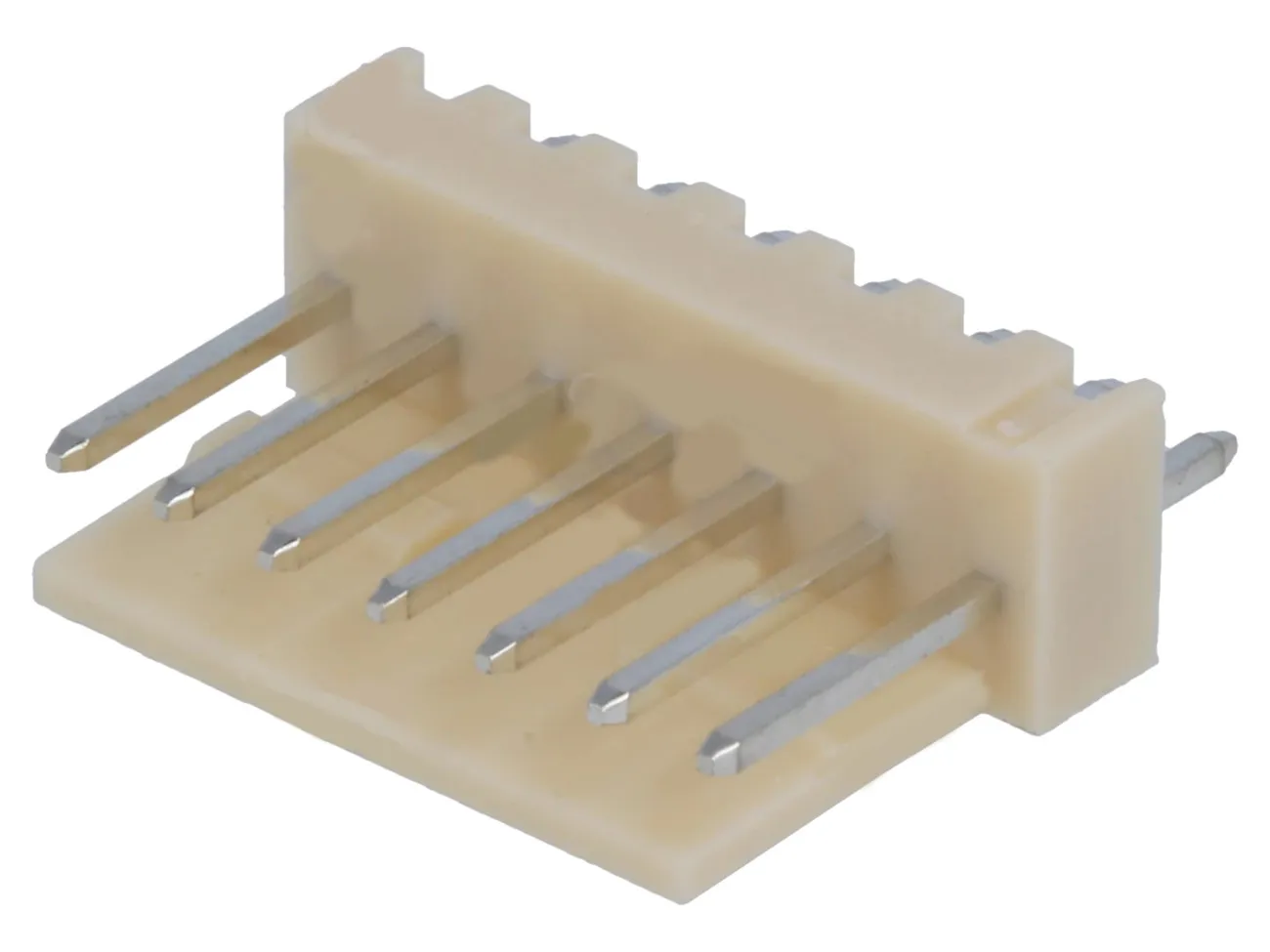

PCB Header 7-Pole Straight P2,54
Varenummer:
152-497
Varekode: NSL254M-7G
Vægt: 0 g
370 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 7690 stk. kan skaffes torsdag d. 29/10
Wire-board, male
NS25
Contacts pitch: 2.54mm
Number of pins: 7
Electrical mounting: THT
Rated voltage: 250V
Current rating: 3A
Contact plating: tinned
Flammability rating: UL94V-0
Operating temperature: -25...85°C
Max. contact resistance: 10mΩ
Spatial orientation: straight
Polyamide
A dimension: 17.78mm
B dimension: 15.24mm
Leads dimensions: 0.64x0.64x3.3mm
Inkl. moms
Kr. 11,00
- v/10 – Kr. 4,50
- v/25 – Kr. 3,75
- v/100 – Kr. 2,00
- v/1000 – Kr. 1,25
