Ethernet Module | Joy-IT
Varenummer:
152-448
Varekode: SBC-USR-ES1
3 stk.
på lager
Model

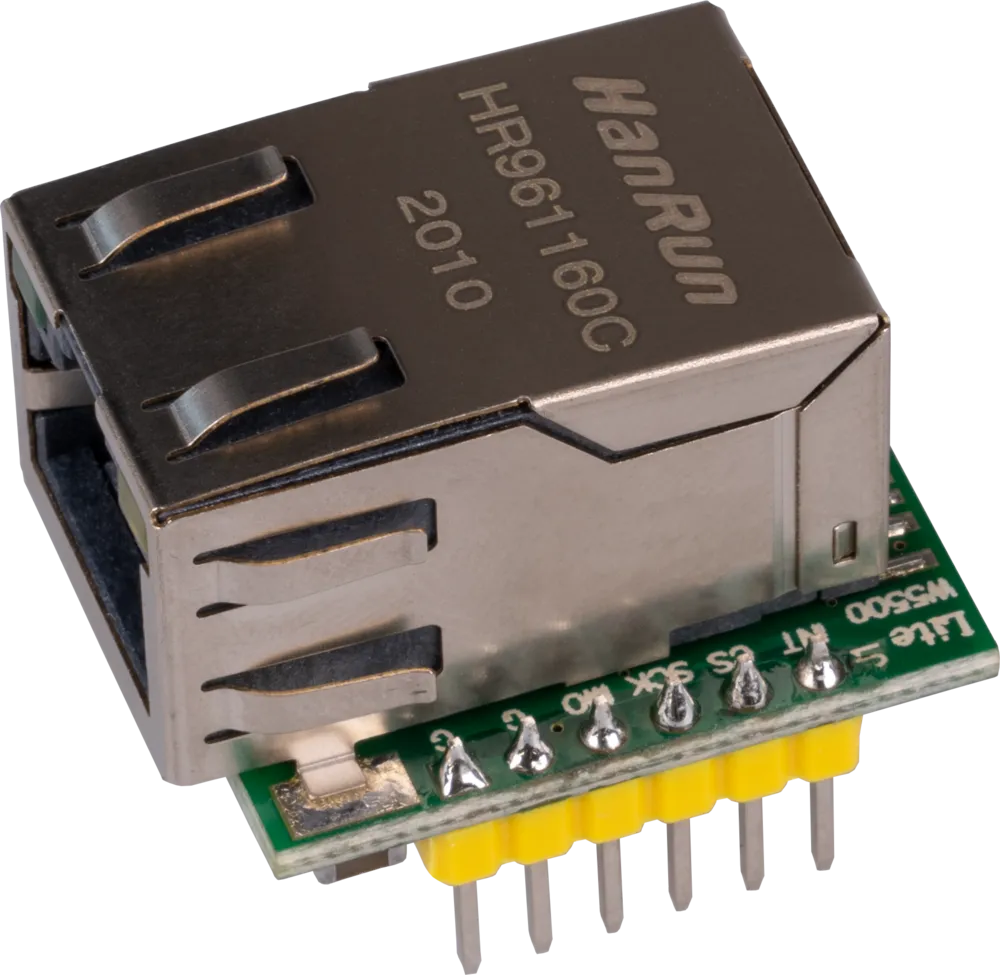

RJ45 Connector module with W5500 chip and status LED
Special feature
integrated full TCP/IP protocol, Wake Up after power failure
Compatible with
Arduino, Raspberry Pi, etc.
Flash storage
32KB TX RX cache buffer
Voltage supply
3.3 V
Working current
min. 200 mA
Logic level
3.3 V (5 V tolerant)
SPI clock frequency
up to 80 MHz
Transmission rate
10/100 MBps
Ethernet standard
10 BaseT /100BaseTX
Supported TCP/IP protocols
TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Operating temperature
-25 to 70 °C
Dimensions
23 x 29 x 24 mm
Items Shipped
SPI to Ethernet converter
EAN
4250236822211
Article No.
SBC-USR-ES1
Inkl. moms
Kr. 164,00
- v/10 – Kr. 128,00
