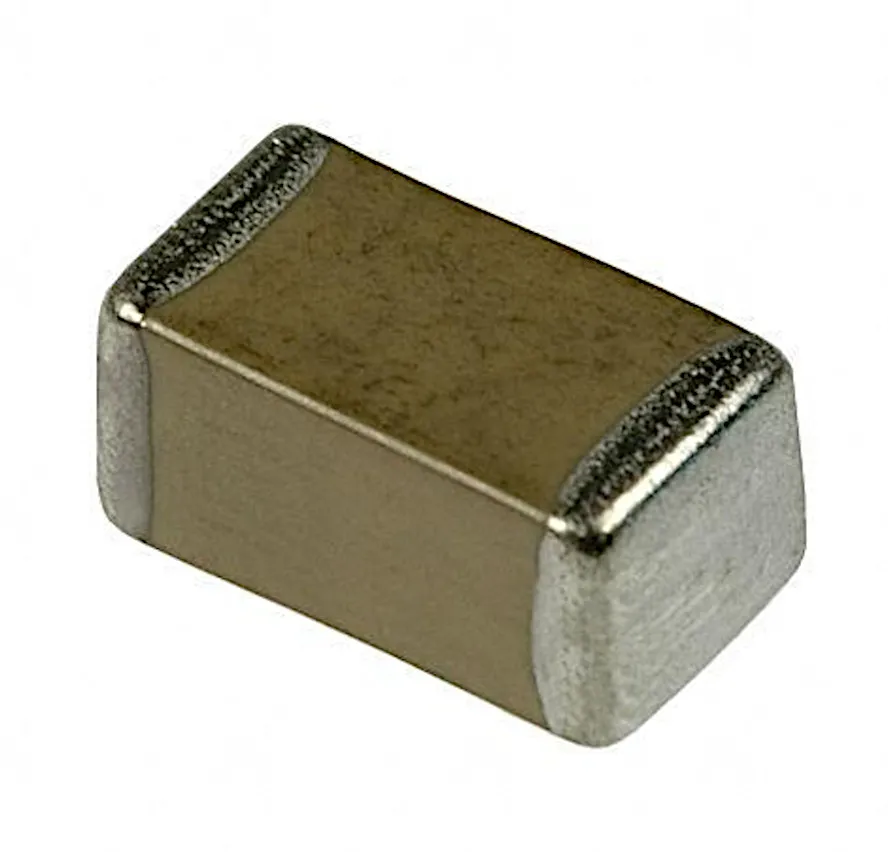

SMD MLC Capacitor 1,2nF 50V 10% X7R 0603
Varenummer:
151-552
Varekode: CVNF1,2K0603
2010 stk.
på lager
Specifikationer
| Materiale | X7R |
|---|---|
| Produkt | kondensator |
| Kondensator-type | keramisk |
| Spænding, max. | 50 V |
| Tolerance | ±10 % |
| Komponenthus | 0603 |
| Kapacitans | 1.2 nF |
Technical Specifications
 |
|
| Rated Voltage (UN) | |
| 680pF...47nF, 100nF: | 50V DC |
| 100nF: | 25V DC |
| 68nF, 100nF: | 16V DC |
| 220nF, 330nF: | 10V DC |
| Test Voltage: | 2,5xUN |
| Capacitance Tolerance: | 10% |
|
|
| Chip Dimensions |
| Housing | L | I | e | bmMin. |
| [mm] | [mm] | [mm] | [mm] | |
| 0603 | 1,6±0,1 | 0,8±0,1 | 0,8±0,1 | 0,5 |
|
||||
Inkl. moms
v/100
Kr. 0,25
- v/500 – Kr. 0,10
- v/4000 – Kr. 0,05
