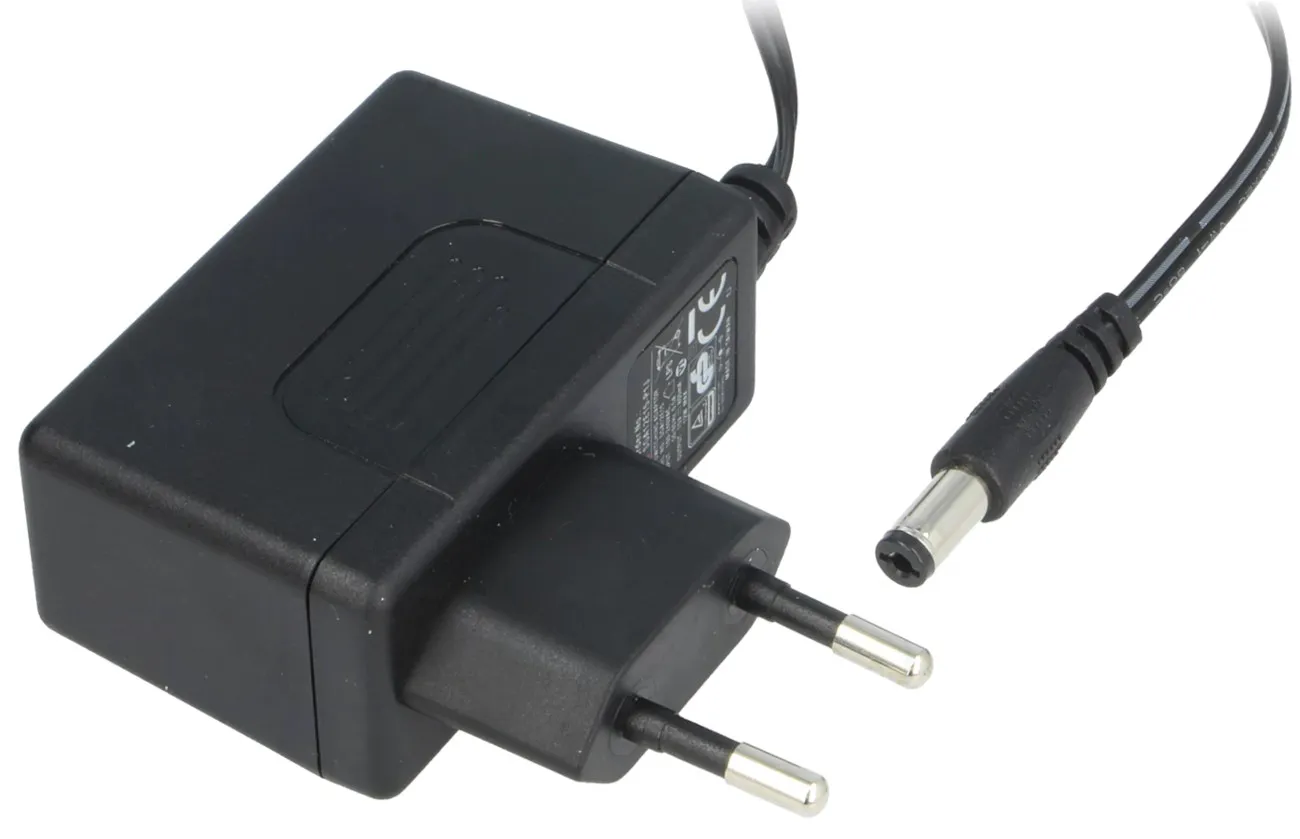

Strømforsyning, SPS, 15V/0,8A / 5,5x2,1
Varenummer:
151-463
Varekode: SGA12E15-P1J
Vægt: 122 g
8 stk.
på lager
Strømforsyning, switched-mode, 800mA, 15V
- Maksimal udgangsstrøm: 0,8A
- Strøm: 12Watt
- Stik: 5,5/2,1
- Mål: 62,2 x 27,4 x 39,5 mm
- Beskyttet mod overspænding, OPP, OVP
- Kabellængde: 1,8 m
- + pol i midten
- Udgangsspænding: 15V DC
- Driftstemperatur: -20...60°C
- Forsyningsspænding: 90...264V AC
- Bruttovægt: 103,7 g
Mena Well SGA12E15-P1J
SPS Plug-in 12W 15V/0,8A /5,5x2,1
Specifications
| Technical data | Information | ||
|---|---|---|---|
|
Brand
|
Mean Well
|
Commodity
|
8504409590
|
|
Item number
|
SGA12E15-P1J
|
|
|
|
Series
|
SGA12E
|
RoHS
|
Compliant
|
|
Description
|
AC-DC Slim wall mounted adaptor; Input range 90-264VAC with 2 pole Euro plug; Output 15VDC at 0.8A
|
Packing quantity
|
90
|
|
Application
|
ITE EN/UL/IEC 60950
|
Net weight (gram)
|
109
|
|
Technology
|
AC/DC
|
||
|
Power Format
|
Wall Mount
|
||
|
Output Power (W)
|
12
|
||
|
Output Voltage (V)
|
15
|
||
|
Output Current (A)
|
0.8
|
||
|
Input Voltage (V)
|
110/230 universal input
90 - 264
|
||
|
IP Rating
|
No IP assigned
|
||
|
Width (mm)
|
27.4
|
||
|
Height (mm)
|
39.7
|
||
|
Depth (mm)
|
62.2
|
||
|
Dimming Technology
|
No Dimming
|
||
Inkl. moms
Kr. 182,50
- v/10 – Kr. 156,25
- v/25 – Kr. 141,25
