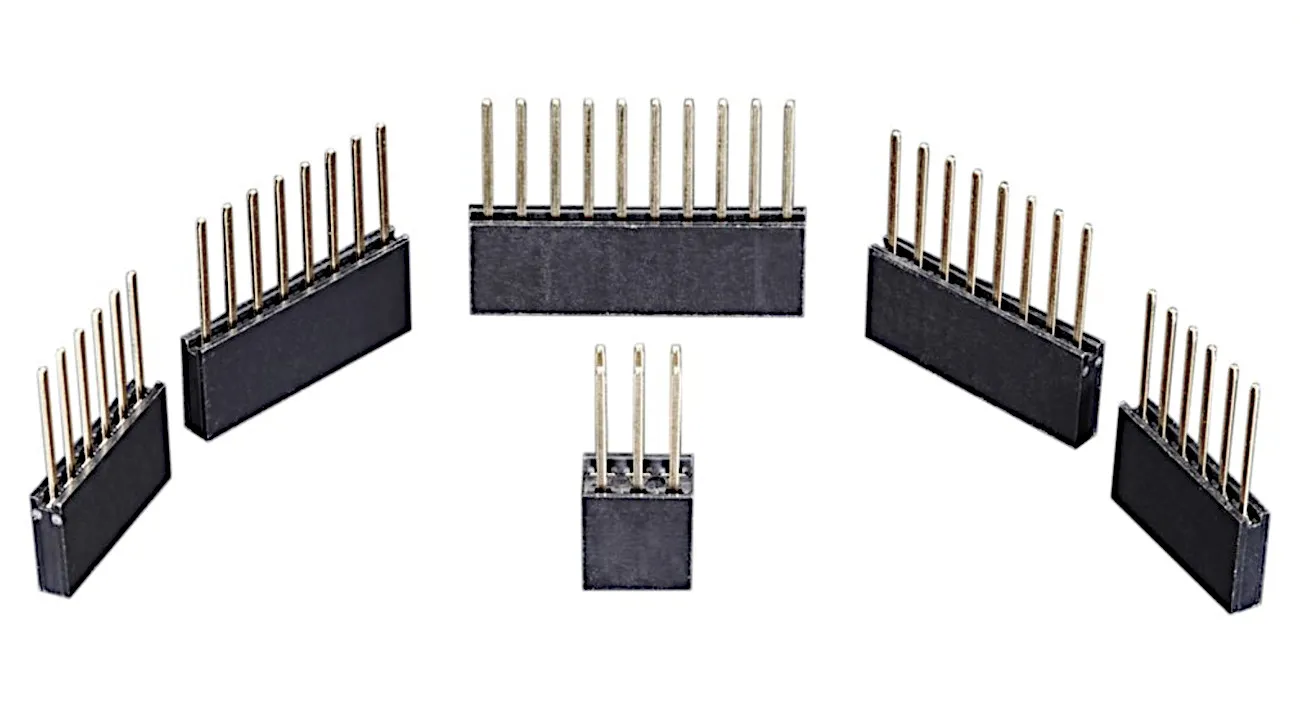

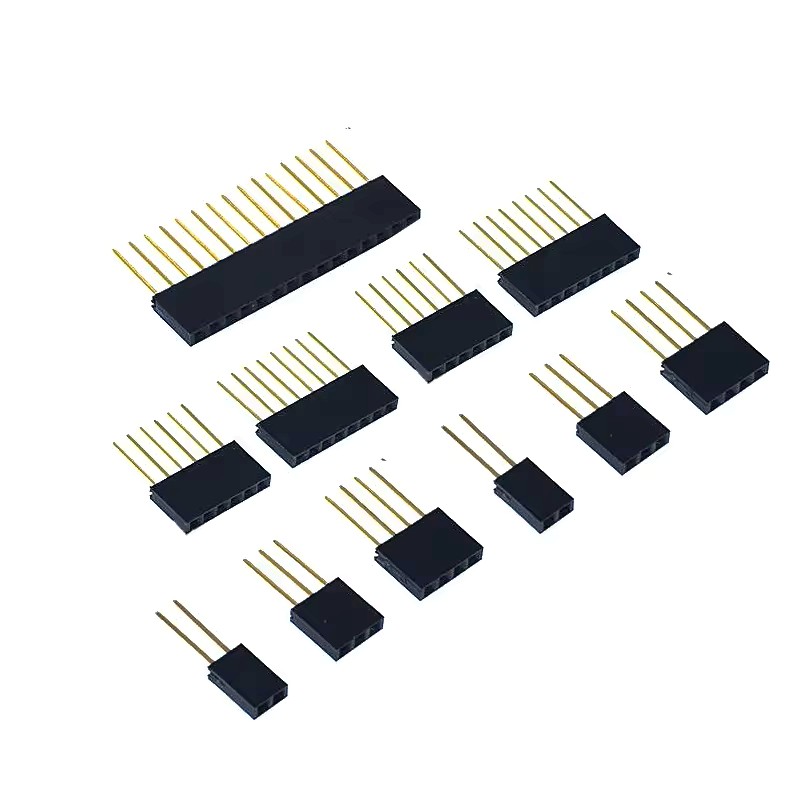

Adafruit Accessories Shield stacking headers for Arduino (R3 Compatible)

Varenummer: 151-332
Varekode: C1649-004
Vægt: 3 g
97 stk. på lager
Vis lignende produkter i kategorien "Arduino"

Skærmgennemføringsstiftlister til Arduino, Adafruit

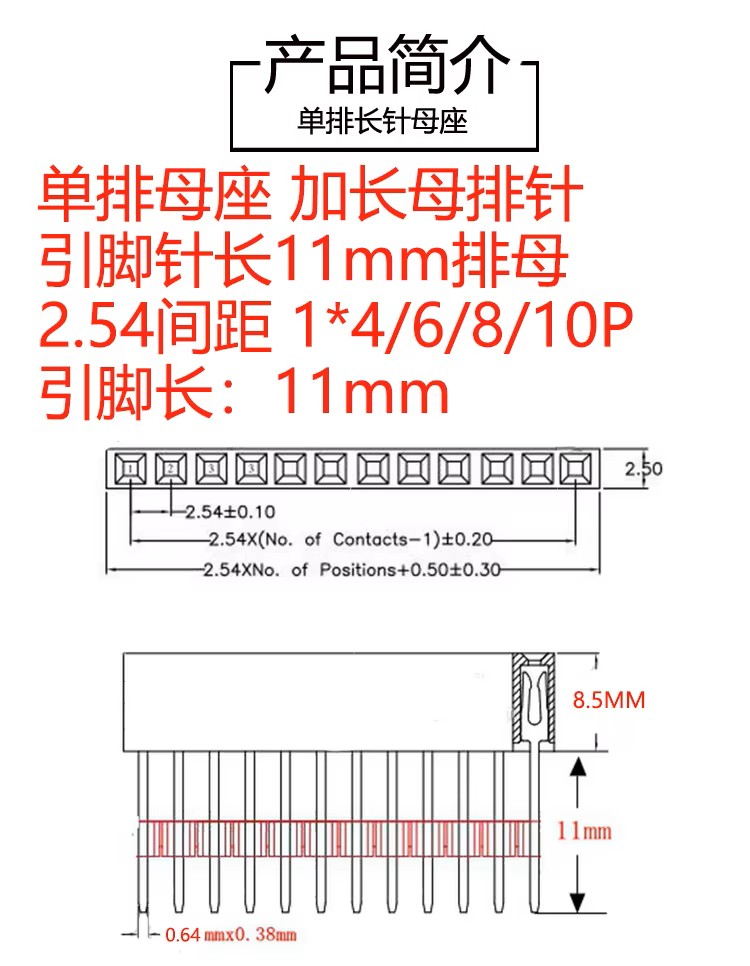

The legs are all 10.5mm long, so after PCB thickness (1.7mm) you have a height of 8.8mm - just enough to clear the Arduino's USB-B connector.  They’re also fully compatible with shields designed for Arduino R3 and the Leonardo.  For shields that don’t use the 10-pin header or 2x3 header, use the 6 or 8 pin ones.

Some experimentation might be necessary to get these working.  For example:

  • You can stack on top of a Proto Shield, but not if there is a breadboard on it
  • You can stack on top of an Adafruit Motor Shield v2
  • You can stack on top of a Wave, NFC/RFID, or GPS shield with no problems
  • You can stack on top of an Ethernet shield, but you'll need two sets of headers to clear the Ethernet jack.
  • You can't stack on top of our TFT or LCD shields
  • Some shields use the ICSP (2x3) header in which case you may need to solder in the stacking 2x3



Manufacturer:Adafruit
Product Category:Adafruit Accessories
RoHS:Details
Product:Shields
Type:Shield Stacking Header
Brand:Adafruit
Description/Function:Shield Stacking Header
Product Type:Accessories
Factory Pack Quantity:  1
Subcategory:Supplies
Unit Weight:5,058 g



















Inkl. moms
Kr. 25,00
  • v/10 – Kr. 20,00
