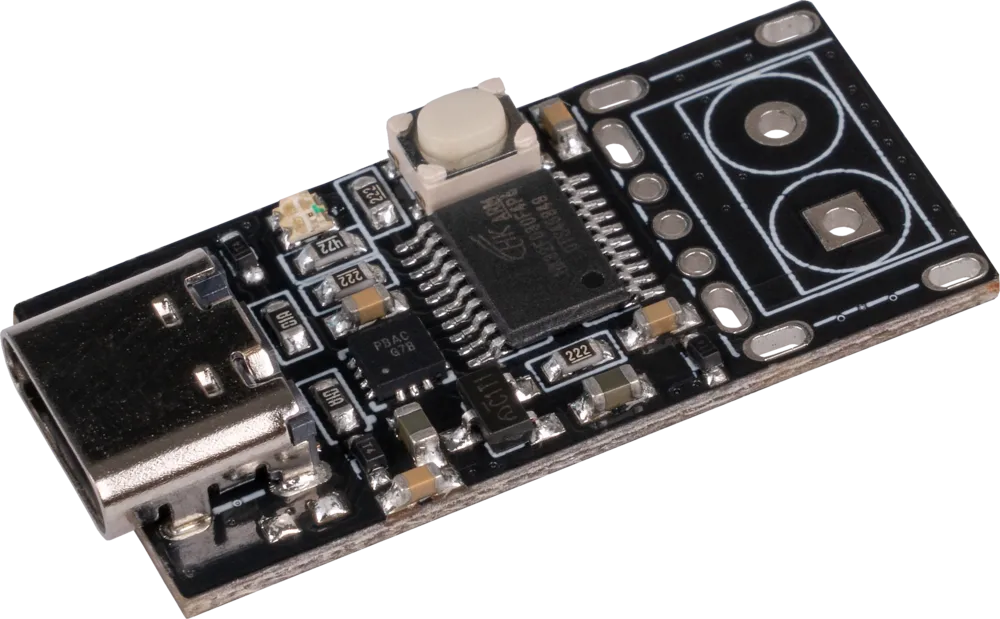

USB-PD Trigger module with USB-C / Solder pads
Varenummer:
151-327
Varekode: COM-ZY12PDN
Vægt: 7 g
6 stk.
på lager
Output voltage
5 V / 9 V / 12 V / 15 V / 20 V (adjustable via button)
Selected output voltage
recognisable by the colour of the RGB LED
Supply voltage
(up to 20 V / 100 W) USB-PD-capable power supply (not included)
Output current
5 A max.
Output power
100 W max.
Input interface
USB-C
Output interface
Solder pads for USB-A and screw terminal connection
Special features
Adjustable output voltage, flexible output interface
Dimensions
31 x 15 x 4 mm
Items Shipped
COM-ZYPDN module
EAN
4250236822150
Article No.
COM-ZY12PDN
Inkl. moms
Kr. 159,00
