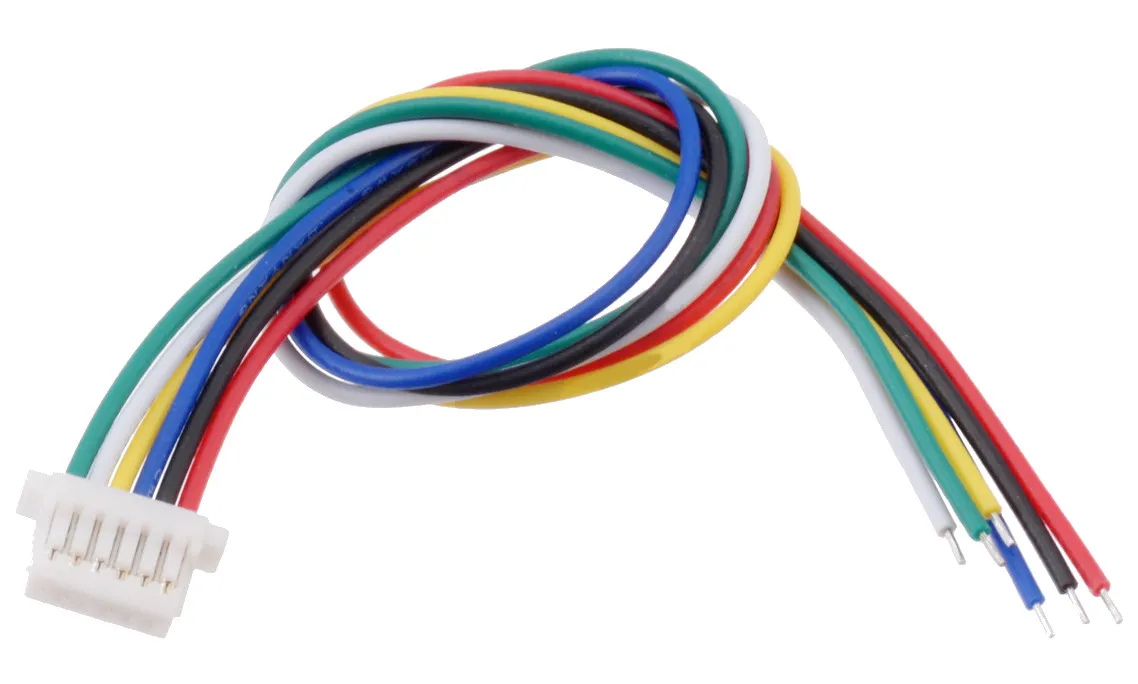

6-Pin Single-Ended Female JST SH-Style Cable 12cm
Varenummer:
151-202
Varekode: 6-PIN FEMALE JST SH-STYLE CABLE 12CM
Vægt: 2 g
7 stk.
på lager
Use with Micro Metal Gearmotor Encoders
When used with our encoders, the wire color scheme is as follows:
 |
| Color | Function |
|---|---|
| Red | motor power (connects to one motor terminal) |
| Black | motor power (connects to the other motor terminal) |
| Blue | encoder Vcc |
| Yellow | encoder A output |
| White | encoder B output |
| Green | encoder GND |
Dimensions
| Pins: | 1×6 |
|---|---|
| Length: | 12 cm |
| Weight: | 1 g |
General specifications
| Gender: | Female-unterminated |
|---|---|
| Wire gauge: | 28 AWG |
| Connector: | JST SH-type |
Inkl. moms
Kr. 22,00
- v/10 – Kr. 16,00
