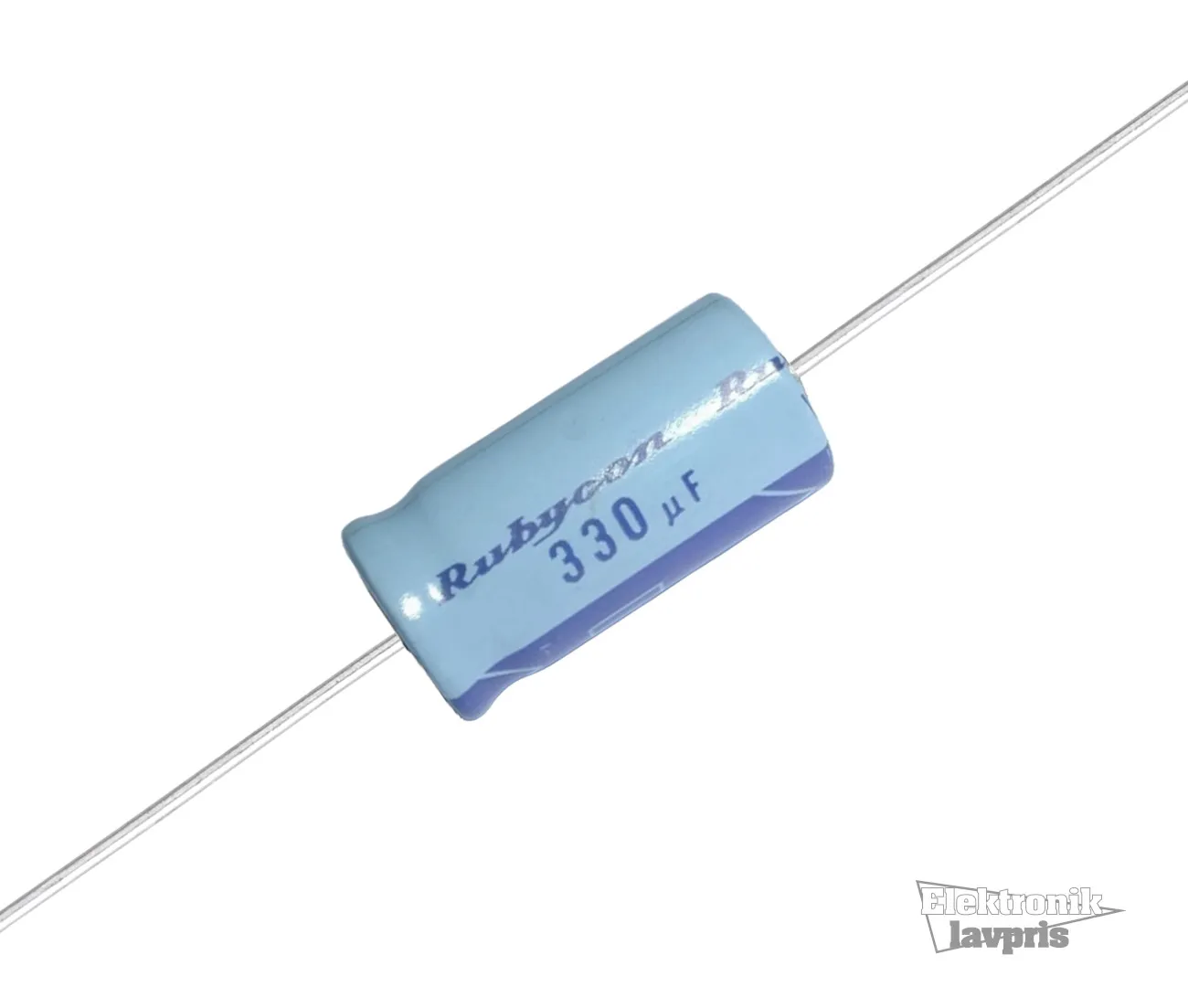

El-Capacitor 330uF/35V 10x24mm
Varenummer:
151-038
Varekode: CAX00330/35-10X24
201 stk.
på lager
Specifikationer
| Produkt | kondensator |
|---|---|
| Kondensator-type | axial |
| Temperatur | -40 – 85 °C |
| Spænding, max. | 35 V |
| Tolerance | +20 % |
| Længde | 2.4 cm |
| Diameter | 1 cm |
| Kapacitans | 330 µF |
Fabrikat RUBICON
|
Capacitance
|
330 µF
|
|
|
Tolerance
|
±20%
|
|
|
Voltage - Rated
|
35 V
|
|
|
ESR (Equivalent Series Resistance)
|
1.0048Ohm @ 120Hz
|
|
|
Lifetime @ Temp.
|
2000 Hrs @ 85°C
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Polarization
|
Polar
|
|
|
Ratings
|
-
|
|
|
Applications
|
General Purpose
|
|
|
Ripple Current @ Low Frequency
|
320 mA @ 120 Hz
|
|
|
Lead Spacing
|
-
|
|
|
Size / Dimension
|
10mm x 24mm
|
|
|
Height - Seated (Max)
|
-
|
|
|
Surface Mount Land Size
|
-
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
Axial, Can
|
Inkl. moms
Kr. 4,00
- v/10 – Kr. 3,00
- v/100 – Kr. 2,50
