STSPIN220 Low-Voltage Stepper Motor Driver Carrier
Varenummer:
150-868
Varekode: STSPIN220
Vægt: 3 g
8 stk.
på lager
STSPIN220 Low-Voltage Stepper Motor Driver Carrier (Header Pins Soldered)

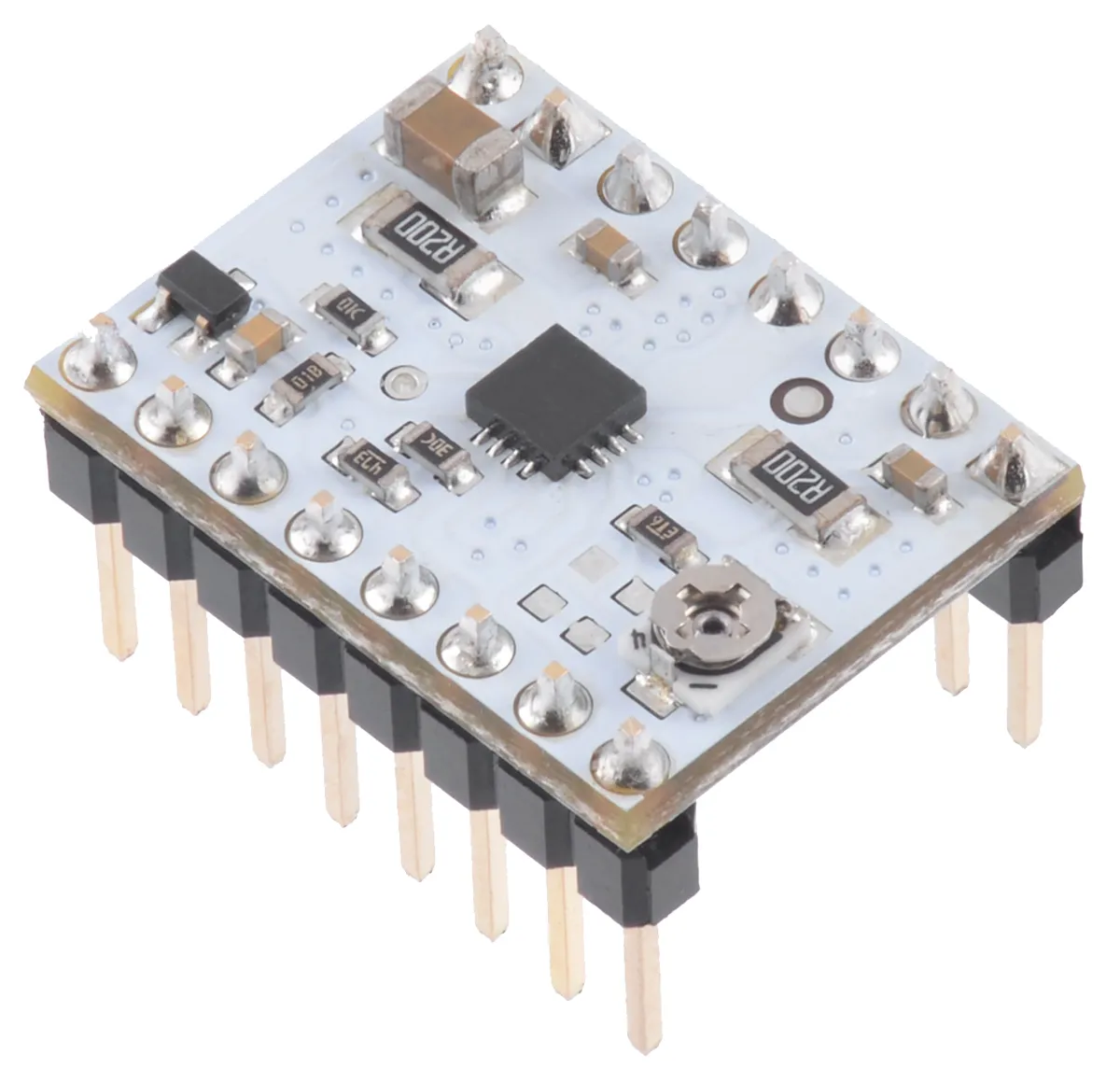

This version of our STSPIN220 Low-Voltage Stepper Motor Driver Carrier ships with male header pins installed as shown in the main product picture, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard
Dimensions
| Size: | 0.6″ × 0.8″ |
|---|---|
| Weight: | 2.5 g |
General specifications
| Motor driver: | STSPIN220 |
|---|---|
| Minimum operating voltage: | 1.8 V |
| Maximum operating voltage: | 10 V |
| Continuous current per phase: | 1.1 A |
| Maximum current per phase: | 1.3 A |
| Minimum logic voltage: | 1.6 V |
| Maximum logic voltage: | 5.5 V |
| Microstep resolutions: | full, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256 |
| Current limit control: | potentiometer |
| Reverse voltage protection?: | N |
| Header pins soldered?: | Y |
Identifying markings
| PCB dev codes: | md39a |
|---|---|
| Other PCB markings: | 0J11899 |
