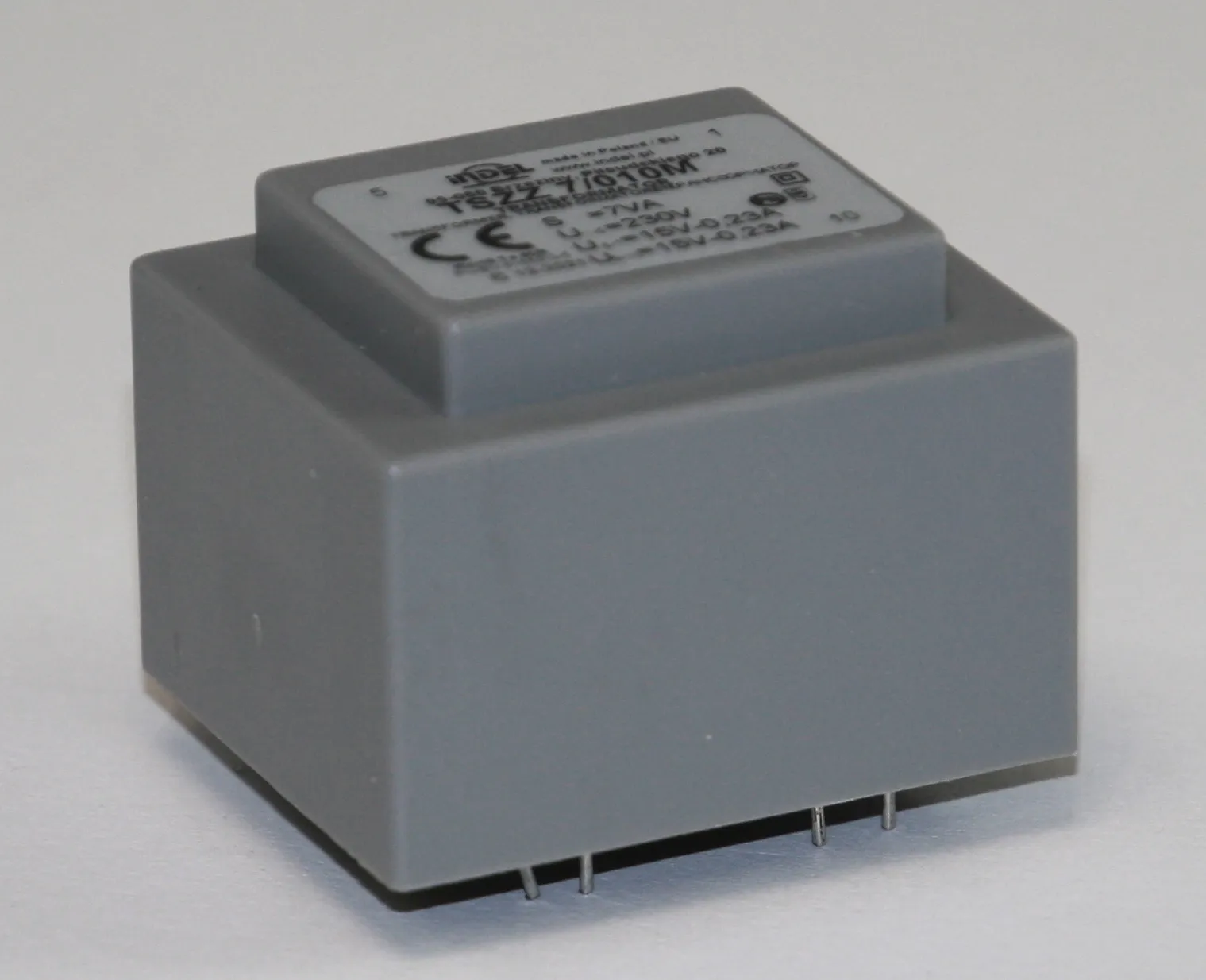

Transformer 7VA 230V 2x15V 230mA

Name: Transformer 7VA 230V 2x15V 230mA
SKU: 150773
Price: 68.91 DKK
Availability: InStock

Varenummer: 150-773

Varekode: TSZZ7/010M

2 stk. på lager

Vis lignende produkter i kategorien "6VA"

Manufacturer	INDEL
Type of transformer	encapsulated
Power	7VA
Primary voltage	230V AC
Secondary voltage 1	15V
Secondary voltage 2	15V
Secondary winding current 1	0.23A
Secondary winding current 2	0.23A
Mounting	PCB
IP rating	IP00
Conform to the norm	PN-EN 61558
Thermal class	Ta40B
Secondary winding terminals	6-7, 9-10
Primary winding terminals	1-5
Insulation class	II
Weight	250g
A dimension	45mm
A1 dimension	31mm
B dimension	38mm
B1 dimension	27mm
C dimension	31.8mm
C1 dimension	26mm
M dimension	25mm
P dimension	5mm
Electrical insulation strength	4kV/60s

Inkl. moms

Kr. 68,91
