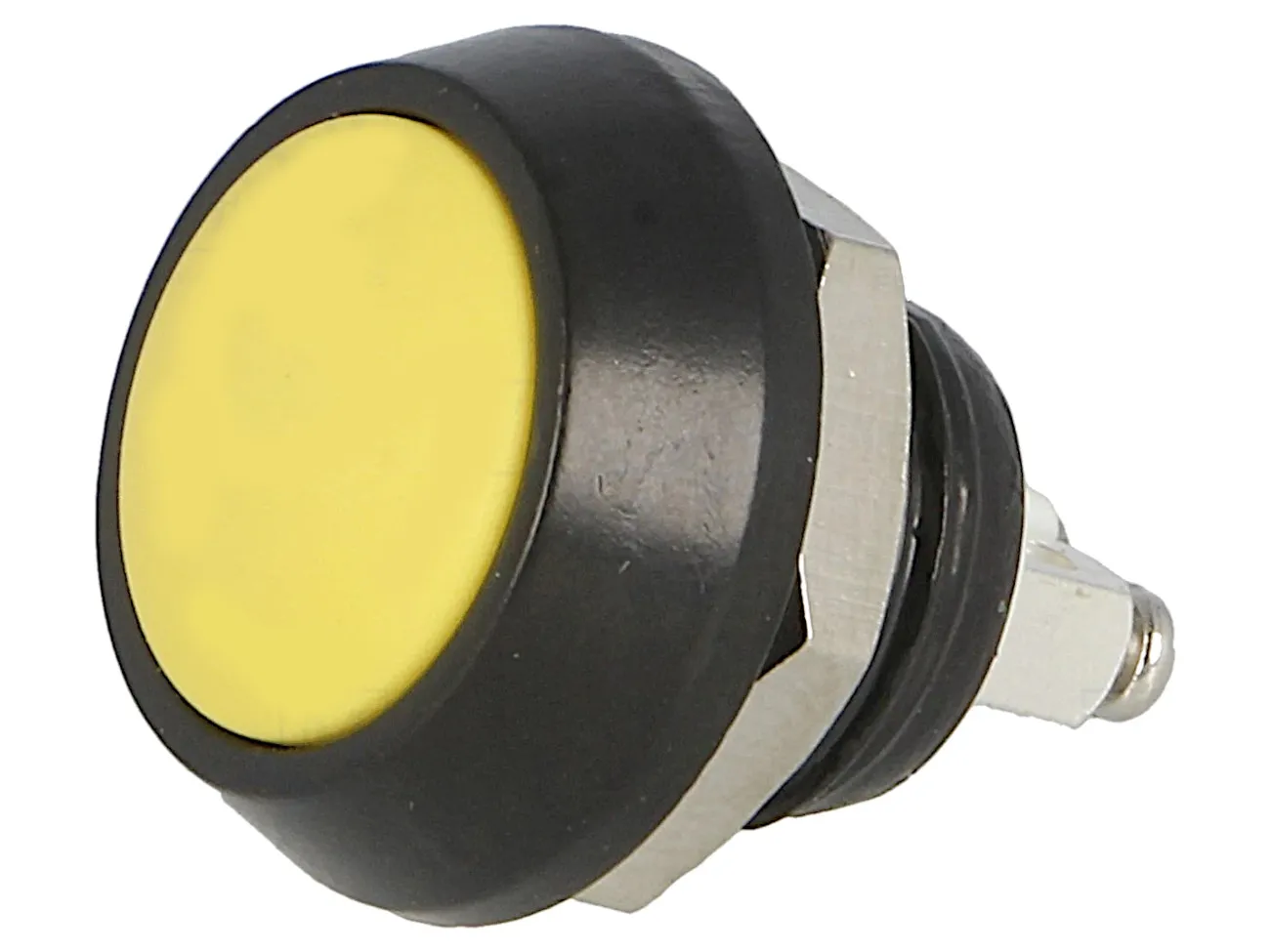

Miniature Momentary Switch OFF-(ON) 2A/36V IP65 Gul

Name: Miniature Momentary Switch OFF-(ON) 2A/36V IP65 Gul
SKU: 150172
Price: 48.00 DKK
Availability: InStock

Varenummer: 150-172

Varekode: GQ12B-10/Y/A

Vægt: 7 g

4 stk. på lager

Bestil inden kl. 14 i dag for afsendelse i dag

Yderligere 306 stk. kan skaffes fredag d. 23/10

Vis lignende produkter i kategorien "For hul Ø12mm"

Manufacturer	ONPOW
Type of switch	vandal resistant
Number of positions	2
Contacts configuration	SPST-NO
DC contacts rating @R (at resistive load)	2A / 36V DC
IP rating	IP65
Switching method (the position in bracket indicates momentary position.)	OFF-(ON)
Leads	screw terminals
Operating temperature	-20...55°C
Electrical life	200000 cycles
Max. contact resistance:	50mΩ
Operating Force	5N
Mechanical durability	1000000 cycles
Button shape	convex
Mounting hole diameter	Ø12mm
Body colour	black
Body material	aluminium
Button material	PBT
Actuator colour	yellow
Min. insulation resistance	1000MΩ
Height above panel	7.2mm
Stable positions number	1

Inkl. moms

Kr. 48,00

Produktfiler

150-172

/ GQ12B-10/Y/A

4 stk. på lager

Bestil inden kl. 14 i dag for afsendelse i dag

Ved bestilling nu, får vi dem hjem fredag d. 23/10

Manufacturer	ONPOW
Type of switch	vandal resistant
Number of positions	2
Contacts configuration	SPST-NO
DC contacts rating @R (at resistive load)	2A / 36V DC
IP rating	IP65
Switching method (the position in bracket indicates momentary position.)	OFF-(ON)
Leads	screw terminals
Operating temperature	-20...55°C
Electrical life	200000 cycles
Max. contact resistance:	50mΩ
Operating Force	5N
Mechanical durability	1000000 cycles
Button shape	convex
Mounting hole diameter	Ø12mm
Body colour	black
Body material	aluminium
Button material	PBT
Actuator colour	yellow
Min. insulation resistance	1000MΩ
Height above panel	7.2mm
Stable positions number	1

Produktfiler

Kr. 48,00

4 stk. på lager

Hjem fredag d. 23/10
