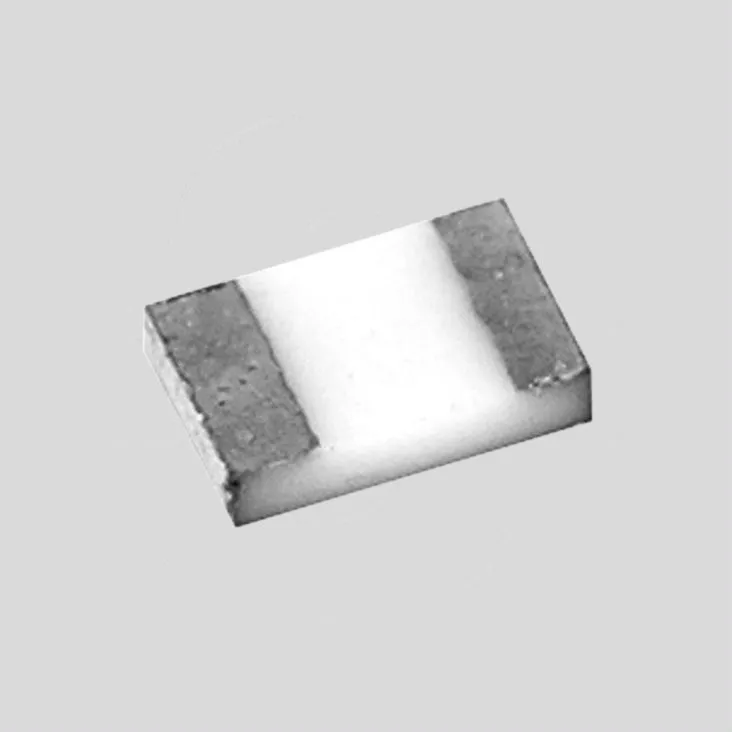

SMD Resistor 0603 0,1% 470K
Varenummer:
149-939
Varekode: ERA3AEB474V
4814 stk.
på lager
Specifikationer
| Modstand | 470 kΩ |
|---|---|
| Komponenthus | 0603 |
| Effekt, max. | 0.1 W |
| Tolerance | ±0.1 % |
Features
| Low temperature coefficient (TC =
25ppm/°C) Low tolerances 0,1% Reference standard: IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B High reliability: stable at high temperature and humidity |
 |
|
Technical Specifications |
|
|
| Resistance Tolerance: | ±0,1% |
| Rated Dissipation (85°C): | 0,1W |
| Operating Voltage, Max. | 75V |
| Temperature Coefficient: | 25ppm/K |
| Temperature Range: | -55...+155°C |
| Derating: | Linear from 85°C to 155°C (0W) |
Produktfiler
