Triac 12A 400V 50mA TO220AB
Varenummer:
149-932
Varekode: TIC236D
3 stk.
på lager
Gruppe: V9531
BOURNS Triacs up to 16A
Series: TIC2_

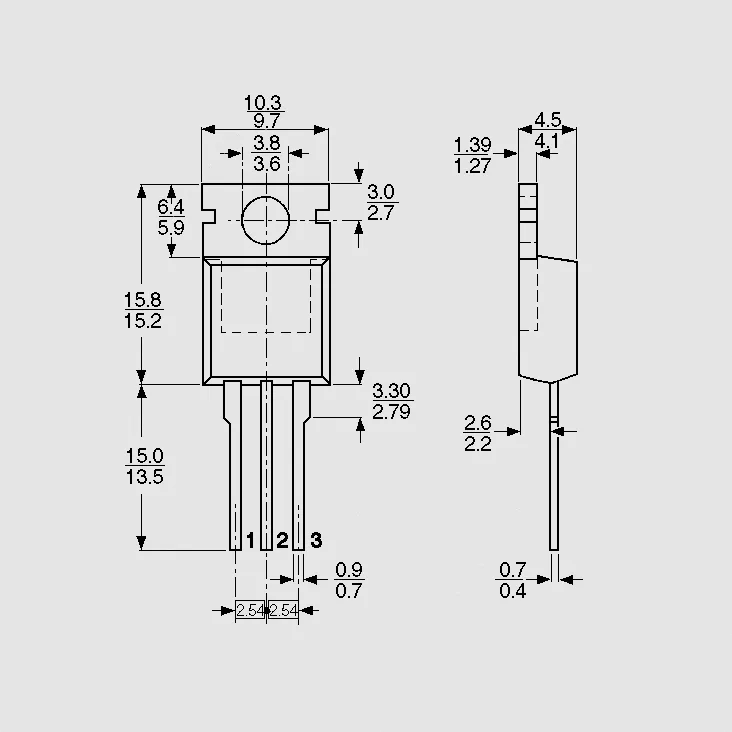

Case: TO220AB
|
Technical Specifications |
| Part Nr. | URRM | IT(RMS) | @TC | ITSM | IGT | [V] | [A] | [°C] | [A] | [mA] | TIC206M | 600 | 4 | 85 | 25 | 5,0 | TIC216M | 600 | 6 | 70 | 60 | 5,0 | TIC225M | 600 | 8 | 70 | 70 | 20 | TIC226M | 600 | 8 | 85 | 70 | 50 | TIC226N | 800 | 8 | 85 | 70 | 50 | TIC236M | 600 | 12 | 70 | 100 | 50 | TIC236N | 800 | 12 | 70 | 100 | 50 | TIC246M | 600 | 16 | 70 | 125 | 50 | TIC246N | 800 | 16 | 70 | 125 | 50 | |||||||
| URRM = Max. Peak Recurrent Reverse Voltage, IT(RMS) = Max. RMS Forward Current, TC = Case Temperature, ITSM = Peak Forward Surge Current, IGT = Max. Gate Trigger Current (I - III) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| You will find suitable isolation assemblies and heatsinks in the blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants can be found in the red "Components & Devices" catalogue starting at product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
| Bourns http://www.bourns.com |
|
