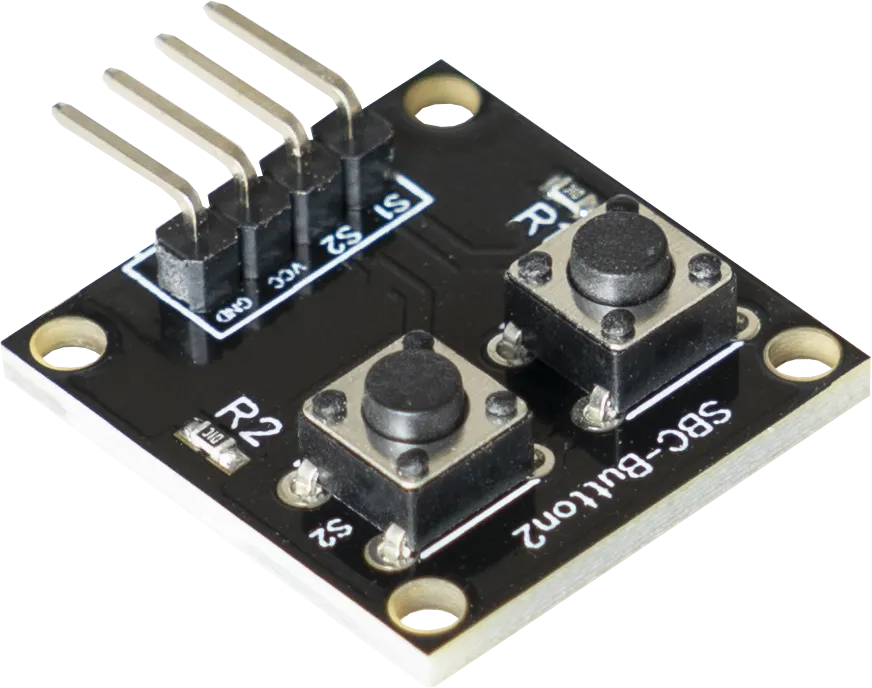

Board with 2 buttons
This module with 2 buttons and integrated pull-up resistors can be soldered, connected with cables or used on a breadboard.
Connected as standard, the module is operated in high-active mode. However, the module can also be operated in low-active mode.
For this purpose, only the VCC and GND connections must be swapped.
Load limit
12 V / 50 mA DC
Logic level standard
High-active
Logic level VCC & GND swapped
Low-active
Color
Black
Dimensions
22 x 27 x 8 mm
Items Shipped
Button module
EAN
4250236820866
Article No.
SBC-Button2
